ARC WELDING TRANSFORMERS:
Particulars |

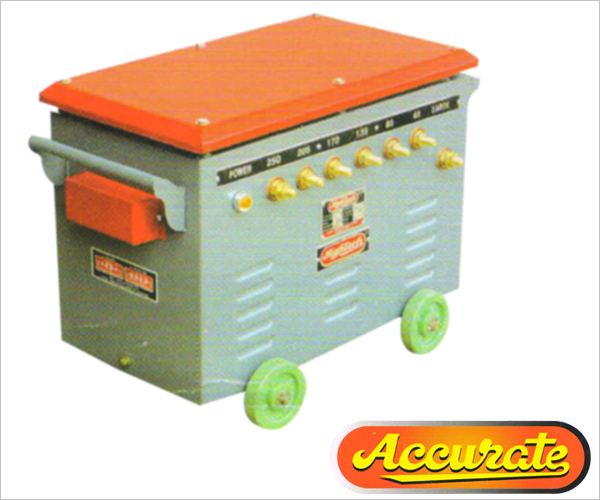

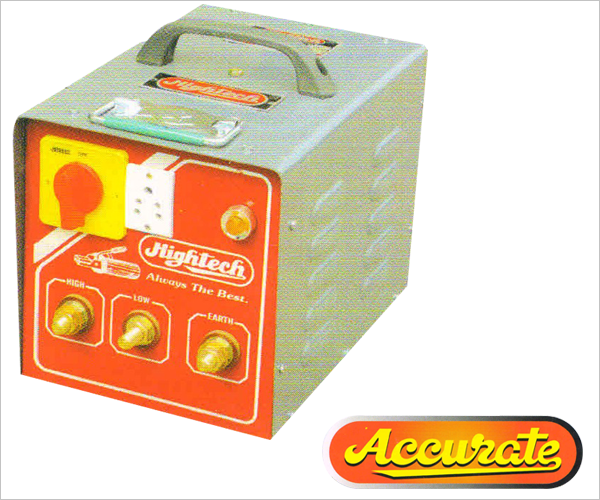

STUDE TYPE |
HEAVY DUTY |

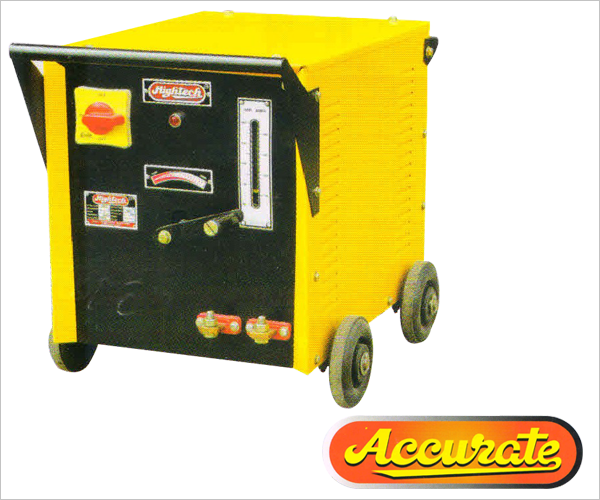

RAGULATOR TYPE |
|||||||
KVA | 4 | 6 | 8 | 10 | 15 | 21 | 15 | 21 | 15 | 21 |
Normal Current Amp | 150 | 150 | 200 | 250 | 300 | 400 | 300 | 400 | 300 | 400 |
Primary Voltage Volts | 230 | 220/440 | 220/440 | 220/440 | 220/440 | 220/440 | 440 | 440 | 440 | 440 |
Phase | 1 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 3 | 3 | 2 | 2 |
Frequency(Hurtz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Open Circuit Voltage(Volts) | 50 | 50 | 55 | 55 | 60 | 60 | 60 | 60 | 60 | 60 |
Conti. 100% Duty per Cycle | 70 | 90 | 120 | 150 | 180 | 240 | 180 | 240 | 210 | 280 |
Current 50% Duty Amp. per Cycle(Amp) | 90 | 150 | 200 | 2850 | 300 | 400 | 300 | 400 | 300 | 400 |
Electode(min. mm) | 2 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Size (max. mm) | 3.15 | 3.15 | 4 | 5 | 5 | 5 | 5 | 6.3 | 5 | 6.3 |
Machine (Hi. mm) | 325 | 400 | 455 | 455 | 500 | 500 | 500 | 500 | 590 | 590 |
Max Approx (L. mm) | 410 | 600 | 700 | 700 | 830 | 830 | 880 | 880 | 725 | 725 |
Diamension (W. mm) | 260 | 370 | 390 | 390 | 440 | 440 | 440 | 440 | 560 | 560 |
Approx Weight (Kg) | ||||||||||
Aluminum Waunds | 27.5 | 43 | 53 | 69 | 82 | 95 | 100 | 110 | 114 | 126 |
Copper Waunds | 30 | 55 | 63 | 83 | 105 | 120 | 120 | 130 | 127 | 141 |
|
THYRISTORISED WELDING RECTIFIERS |

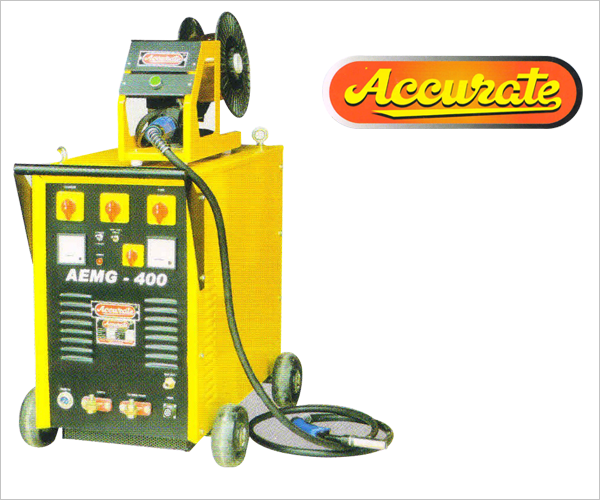

MIG WELDING |
DIOD TYPE RECTIFIER |
|
Models | AE - 409 | AE - 609 | AEMG - 400 | Diod Type Welding Rectifier |
In put Supply | 415 Volts, 3 Phase, 50Hz AC | 415 Volts, 3 Phase, 50Hz AC | 415 Volts, 3 Phase 50Hz AC | 415 Volts, 3 Phase 50Hz AC. |
Max welding current @ 60% | 400 Amps | 600 Amps | 400 Amps. | 400 Amps. |
Duty Cycle | ||||
Welding current range | 50 - 400 | |||
Max open circuit voltage | 90 Volts DC | 90 Volts DC | 18 to 54 Volts DC | 80 Volts DC |
Rating (KVA) | 22 KVA | 40 KVA | 26 KVA | |
Cooling | Forced Air | Forced Air | Forced Air | Forced Air |
Suitable for wire Steel | 0.8, 1.2, 1.6 mm | |||
Weight | 165 Kgs | 185 Kgs | 185 Kgs | 250 Kgs. |
Diamension (LxWx H) mm | 840 x 500 x 750 mm. | 970x 550x 800 mm. | 840 x 500 x 750 mm. | 990 x 560 x 820 mm. |
No. of Voltage Setti | 32 | |||
Insulation class | 'F' | 'F' | 'F' |

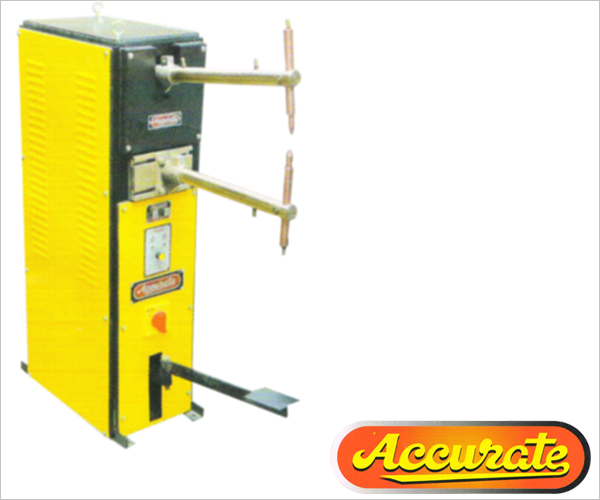

MODEL |
AE-6 |
AE-8 |
AE-10 |
AE-15 |
AE-20 |
AE-2 |
5 AE-30 |
Rating @ 50% Duty Cycle (KVA) | 6 | 8 | 10 | 15 | 20 | 25 | 30 |
Standard Throat Depth | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Nominal Throat Clearance (mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Welding Range | |||||||
M.S. Sheet Max 2 x mm | 1.6 | 1.8 | 2.0 | 3.0 | 3.25 | 3.5 | 4 |
Thickness Min 2 x mm | 0.16 | 0.2 | 0.2 | 00.3 | 0.5 | 0.6 | 0.8 |
Brass to Copper Max. 2 x mm | 0.6 | 0.7 | 1 | 1.5 | 1.6 | 1.6 | 1.8 |
Thickness Min. 2 x mm | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 |
S.S. Sheet Max. 2 x mm | 1.6 | 1.8 | 2 | 2.8 | 3 | 3.5 | 4.0 |
Thickness Min. 2 x mm | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.6 | 0.8 |
lnsulation Class | B | B | B | B | B | B | B |
Cooling for Arms & Electrodes | Water | Water | Water | Water | Water | Water | Water |
Main Supply Voltage (V) | 220/440 | 220/440 | 440 | 440 | 440 | 440 | 440 |
Phase (No.) | 1/2 | 1/2 | 2 | 2 | 2 | 2 | 2 |
Delayed Action Fuse_(A) | 15 | 20 | 25 | 30 | 45 | 50 | 70 |
