| Specification |
PILLAR DRILL PS-20 |

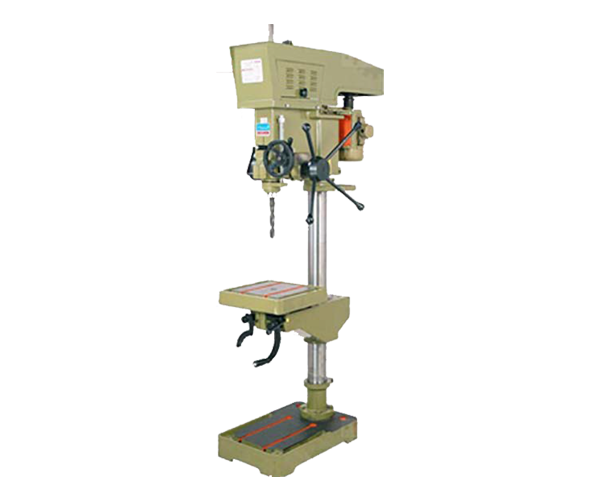

PILLAR DRILL PS-25 |

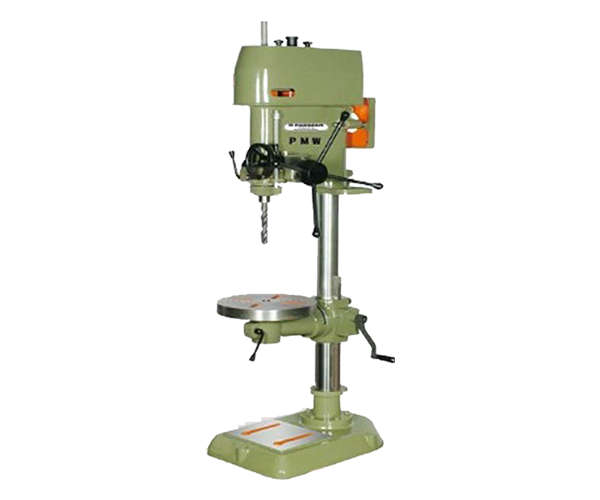

PILLAR DRILL PRL-25 |
PILLAR DRILL PRL-40 |
PILLAR DRILL PSL-40 |
PILLAR DRILL PSL-40A |
| Tilting working table |
FIXED |
FIXED |
Upto 360° |
FIXED |
FIXED |
- |
| Drilling capacity |
20 mm |
25 mm |
25 mm |
40 mm |
40 mm |
40 mm |
| Pillar Diameter |
74.30 mm |
92 mm |
92 mm |
121 mm |
121 mm |
135 mm |
| Spindle nose to table distance |
650 mm |
660 mm |
645 mm |
595 mm |
595 mm |
495 mm |
| Distance from spindle nose to base distance |
900 mm |
1045 mm |
1000 mm |
1050 mm |
1050 mm |
1000 mm |
| Distance from spindle center to pillar surface |
200 mm (MAX) |
250 mm (MAX) |
250 mm (MAX) |
320 mm (MAX) |
320 mm (MAX) |
380 mm (MAX) |
| Table Travel |
200 mm |
480 mm |
480 mm |
480 mm |
480 mm |
500 mm |
| Taper in spindle |
MT - 2 |
MT - 3 |
MT - 3 |
MT - 4 |
MT - 4 |
MT - 4 |
| Number of speed |
8 Speed |
8 Speed |
8 Speed |
8 Speed |
8 Speed |
8 Speed |
| Range of Speed (RPM) |
80 to 3500 |
130 to 2600 |
70 to 2000 |
70 to 2000 |
70 to 2000 |
60 to 2000 |
| Table Size (in mm) |
260 X 260 |
330 X 330 |
350 DIA. |
410 X 410 |
410 X 410 |
490 X 490 |
| Base size (Machined Area mm) |
470 X 320 |
365 X 575 |
255 X 310 |
440 X 715 |
440 X 715 |
820 X 490 |
| Overall Base Size (in mm) |
490 X 310 |
370 X 580 |
425 X 670 |
445 x 720 |
445 x 720 |
825 X 495 |
| Spindle Travel |
130 mm |
180 mm |
250 mm |
250 mm |
250 mm |
250 mm |
| Pillar Length |
1170 mm |
1410 mm |
1400 mm |
1450 mm |
1450 mm |
1475 mm |
| Overall height with pulley guard |
1420 mm |
1730 mm |
1780 mm |
1860 mm |
1860 mm |
1840 mm |
| V-Belt section |
A-44" |
B-52" |
B-51" |
B-59" |
B-59" |
B-74" |
| Weight (Approx.) |
110 kg. |
225 kg. |
250 Kg. |
325 kg. |
325 kg. |
500 kg. |
| Motorl 440 RPM 3 Phase 440 volts |
0.5 HP |
1 HP |
1 HP |
1 HP |
1 HP |
2 HP |
| Shipping Wooden Case Inner Size L x W x H (in mm) |
660 x 380 x 1140 |
850 x 450 x 1770 |
690 x 460 x 1800 |
860 x 460 x 1880 |
860 x 460 x 1880 |
1200 x 540 x 1880 |
