| ITEM |

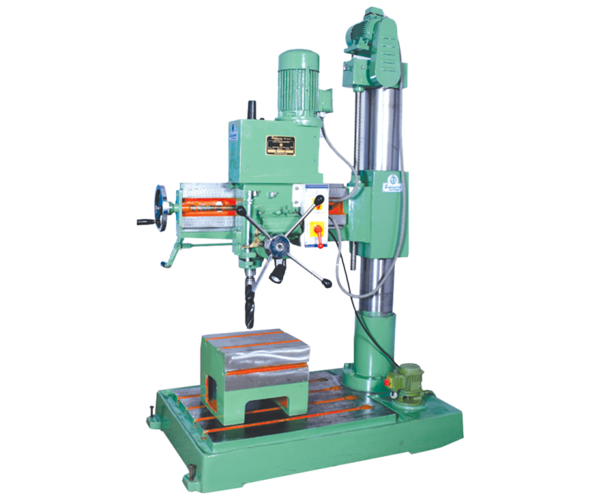

SMTR III |

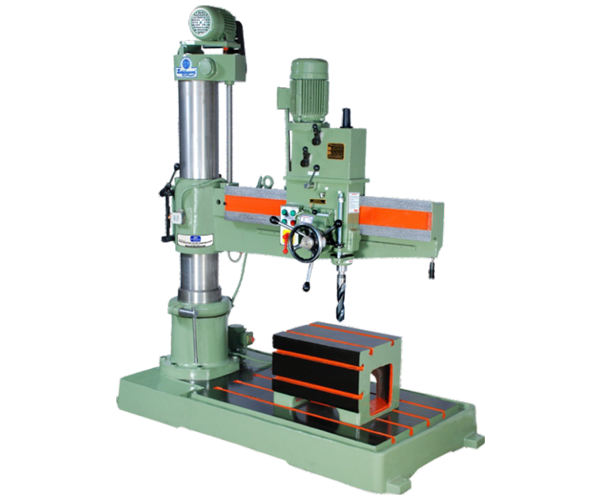

SMT 40/1200 |
| Spindle Nose |
MT-4 |
MT-4 |
| Spindle Travel |
220 |
210 |
| No. of Spindale Speed |
8 |
8 |
| Range of Spindle Speed |
90 to 1000 RPM |
90 to 1000 RPM |
| Number of Power |
2 |
2 |
| Range of Power Feed |
0.20-0.10 |
0.20-0.10 |
| Main Motor (1.5 HP) |
1400 KW/RPM |
1400 KW/RPM |
| Arm Elevatng Motor (0.50 HP) |
2800 KW/RPM |
2800 KW/RPM |
| Shipping Size Approx. L x W x H |
|
1900 x 1000 x 2200 |
| Drilling Radius Max. / Min |
895/440 |
1305/485 |
| Max. / Min. Dist. Column to Spindle Centre |
850/275 |
1200/380 |
| Max/ Min Drill Head Drive |
855/400 |
..... |
| Max./Min. Base Plate to Spindle |
930/230 |
1180/500 |
| Diameter of Column |
168 |
220 |
| Vertical Power Movement of Arm |
..... |
750 |
| Horizontal Movement of Drilling Head |
..... |
630 |
| Box Table L x W x H |
380 X 300 X 300 |
510 x 380 x 355 |
| L x W x H |
760 x 1250 x 150 |
1800 x 900 x 180 |
| Working Surface |
820 x 610 |
1020 x 650 |
| No. of T-Slot |
4 (16 mm) |
4 (16 mm) |
| Overall Height |
2000 |
2200 |
| Wooden Case (L x W x H ) |
1250 x 1550 x 2000 |
1900 x 1000 x 2200 |
