Lovely - FlyPress Machine

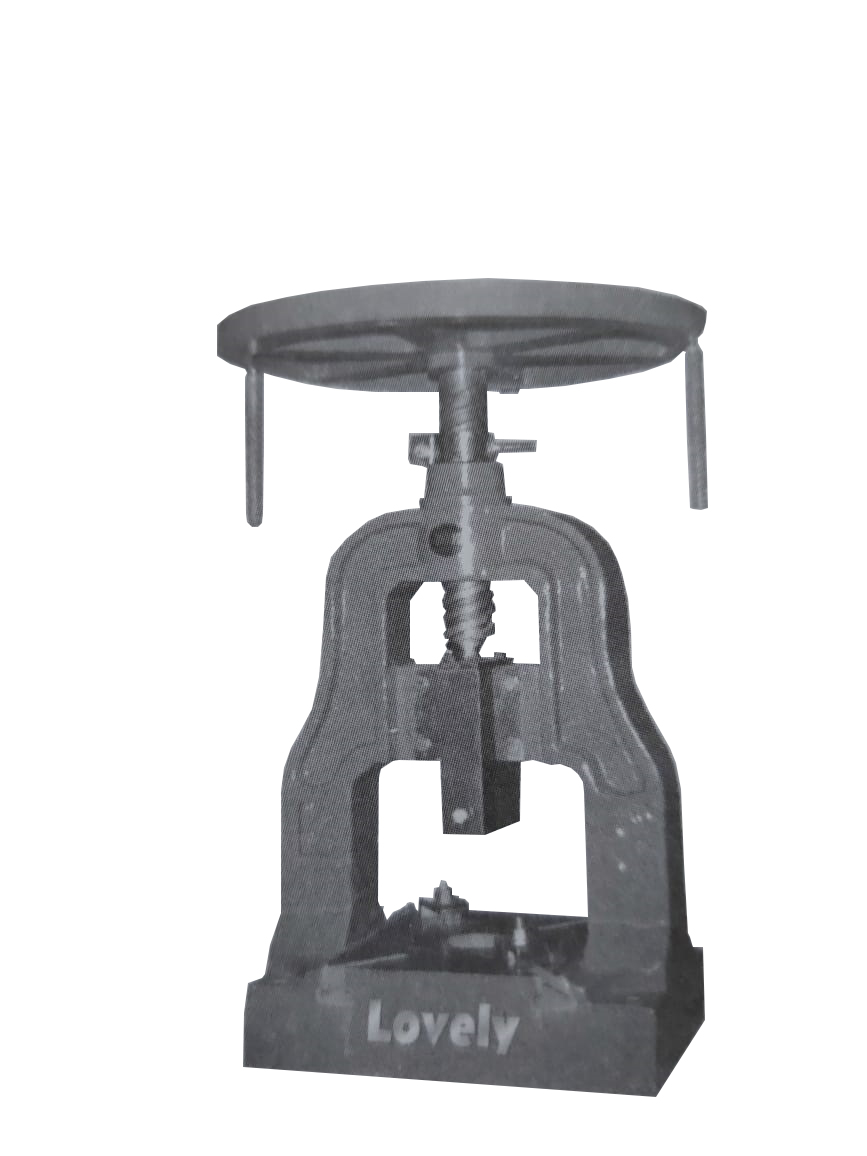

Double Body Presses

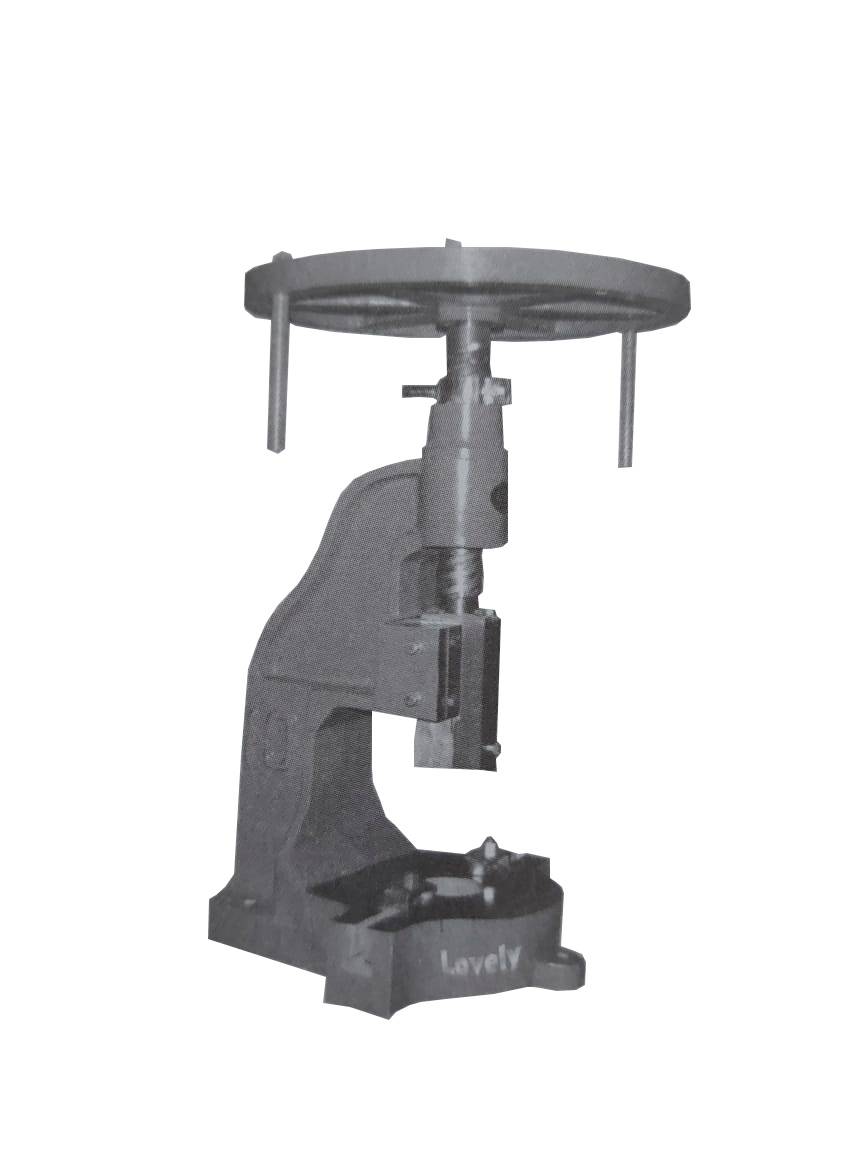

Fly Presses

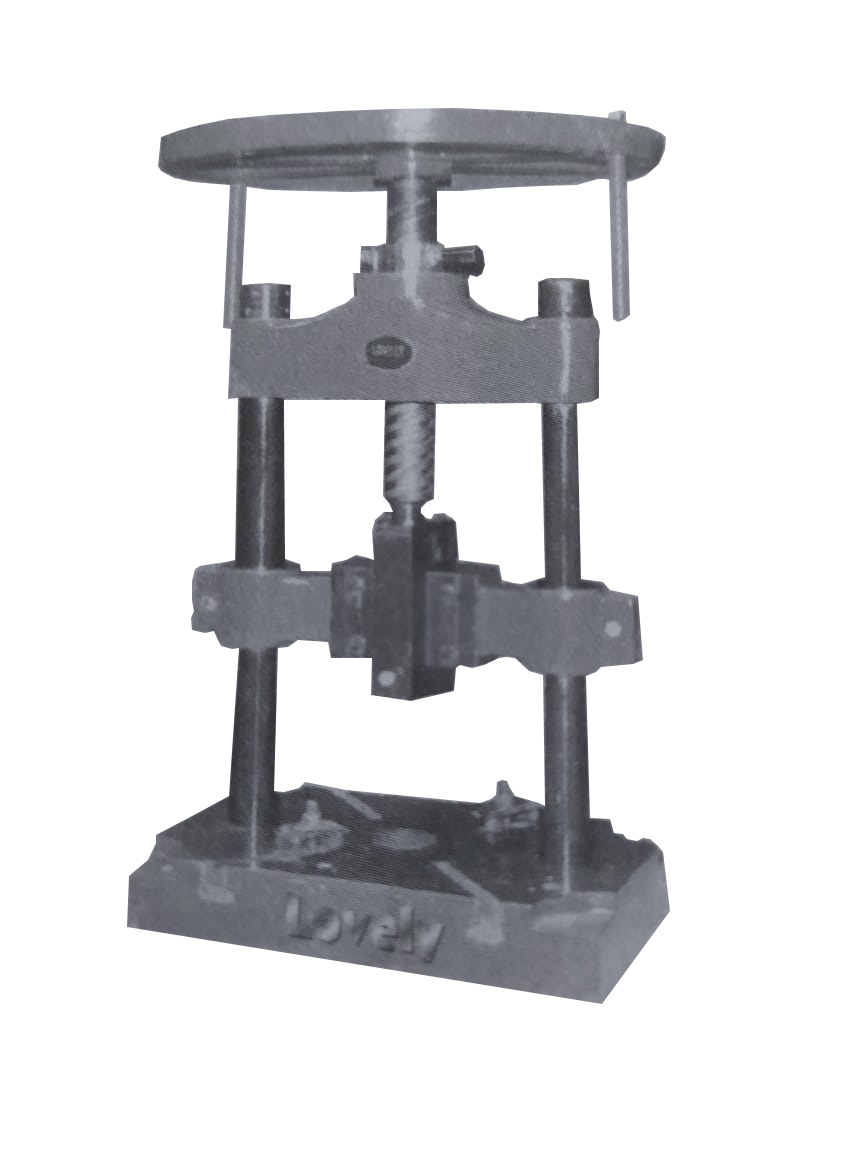

Piller Presses
SPECIFICATIONS FOR FLY PRESSES
| Size of Press | Centre to Back | Base to Guide | Dia of Screw | Dia of Wheel | Hole in Base | Wt. Kgs. Approx |
| 0 | 3 ½" | 4 ¾" | 1 ½" | 14" | 1 ½" | 50 |
| 1 | 3 ¾" | 5 ½" | 1 ½" | 16" | 1 ½" | 60 |
| 2 | 4" | 6" | 1 ¾" | 18" | 1 ¾" | 75 |
| 3 | 4 ½" | 6 ¼" | 2" | 20" | 2" | 100 |
| 4 | 5" | 6 ½" | 2" | 22" | 3" | 150 |
| 5 | 5 ½" | 6 ¾" | 2 ¼" | 24" | 3 ¼" | 200 |
| 6 | 6" | 7 ¼" | 2 ½" | 26" | 3 ¾" | 250 |
| 7 | 7 ¼" | 8 ¼" | 2 ½" | 28" | 4 ¼" | 275 |
| 8 | 7 ½" | 9" | 2 ¾" | 30" | 4 ½" | 325 |
| 9 | 8" | 11" | 3" | 32" | 5" | 400 |
| 10 | 9 ½" | 11 ½" | 3" | 32" | 5" | 450 |
SPECIFICATIONS FOR DOUBLE BODY PRESSES
| Size of Presses | Diameter of Screw | Width Between Frames For Dies | Bed to Guide | Size of Bed | Die of Wheel | Wt. Kgs. Approx. |
| No. 4 | 2 ½" | 10 ½" | 8 ½" | 12 x 19" | 24" | 200 |
| No.6 | 2 ¾" | 12" | 9 ¾" | 14 ½ x 21" | 28" | 325 |
| No. 8 | 3" | 13 ¾" | 10 ½" | 16 ¼ x 23" | 32" | 400 |
| No. 10 | 3" | 14" | 11" | 17 ¼ x 26" | 34" | 500 |
| No. 12 | 3 ⅜" | 17" | 12" | 20 x 29" | 36" | 650 |
| No. 16 | 4" | 18" | 14" | 22 x 33" | 44" | 900 |
| No. 20 | 4 ½" | 23" | 14" | 24 ¼ x 37" | 48" | 1450 |
| No. 24 | 5" | 25" | 16" | 26 x 40" | 56" | 1675 |
SPECIFICATIONS FOR PILLAR PRESSES
| Size No. | Screw Dia | Pillar Dia | Total Height | Difference Between Pillar | Base Size LXBXH | Wheel Dia | Wt. Kgs. Approx |
| 2 | 1 ⅜" | 1 ⅜" | 21" | 9" | 15" x 9" x2 ½" | 18" | 100 Kg |
| 3 | 1 ⅞" | 1 ⅞" | 24" | 10" | 17" x 11" x 3" | 20" | 125 Kg |
| 4 | 2 ⅛" | 2 ⅛" | 26" | 11" | 18" x 11 ½" x 3" | 24" | 175 Kg |
| 5 | 2 ⅜" | 2 ⅜" | 32" | 12" | 20" x 14" x 3.5" | 26" | 250 Kg |
| 6 | 2 ⅝" | 2 ⅝" | 36" | 13 ½" | 24" x 14" x 4" | 28" | 325 Kg |
| 8 | 3" | 3" | 40" | 16" | 27" x 16" x 5" | 32" | 450 Kg |
| 10 | 3 ⅜" | 3 ⅜" | 42" | 18 ½" | 31" x 18" x 5" | 36" | 600 Kg |
| 12 | 3 ⅞" | 3 ⅞" | 44" | 20" | 32" x 20" x 5" | 40" | 700 Kg |
| 16 | 4 ⅜" | 4 ⅜" | 48" | 22" | 36" x 21" x 6" | 44" | 1000 Kg |
| 20 | 5" | 5" | 54" | 26" | 44" x 28" x 7" | 48" | 1300 Kg |
