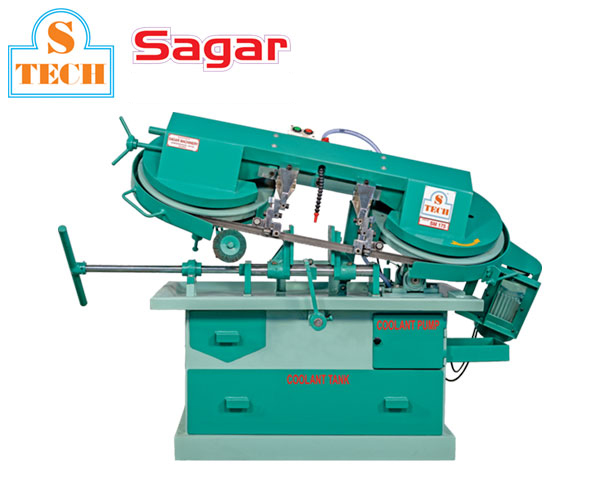

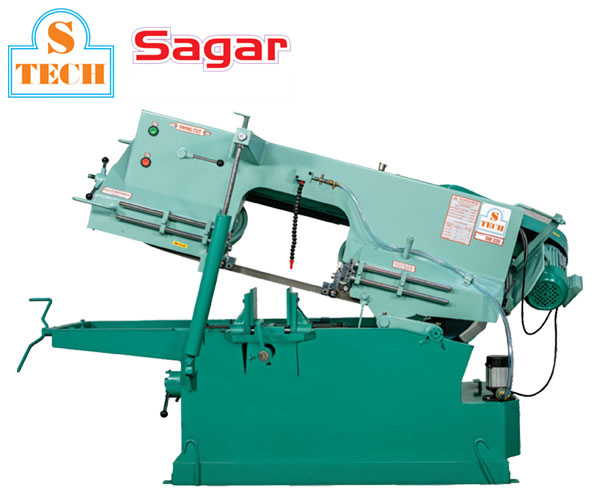

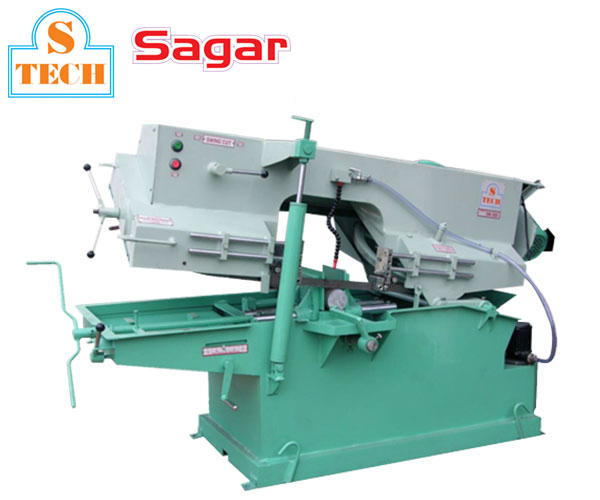

Sagar - Manufacturer of High-Speed Horizontal Metal Cutting Bandsaw Machines

MODELS: SM225, SM275, SM325, SM400, SM475, SM600

Technical Specifications:

Model	SM225	SM275	SM325	SM400	SM475	SM600
Cutting Capacity (Round) mm	225	275	325	400	475	600
Cutting Capacity (Square) mm	175 x 175	200 x 200	250 x 250	350 x 350	375 x 375	425 x 425
Motor	1 HP, 1440 RPM	1.5 HP, 1440 RPM	2 HP, 960 RPM	2 HP, 960 RPM	2 HP, 960 RPM	5 HP, 960 RPM
Coolant Pump	0.15 HP, 2800 RPM	0.15 HP, 2800 RPM	0.15 HP, 2800 RPM	0.15 HP, 2800 RPM	0.15 HP, 2800 RPM	0.25 HP, 2800 RPM
Drive	Worm Gearbox	Worm Gearbox	Worm Gearbox	Worm Gearbox	Worm Gearbox	Worm Gearbox
V-Belt Size	A45	A46	A47	A53	A53	B68
Blade Size (mm)	3000 x 27 x 0.9	3505 x 27 x 0.9	3760 x 27 x 0.9	4420 x 34 x 1.1	4570 x 34 x 1.1	5800 x 41 x 1.3
Blade Speeds (mtr/min)	22-37-55-75	22-37-55-75	22-37-55-75	22-37-55-75	22-37-55-75	22-37-55-75
Swing Cut	Yes	Yes	Yes	Yes	Yes	No
Weight (kg)	375	400	460	750	800	1300
Dimensions L x W x H (mm)	2040 x 760 x 1070	2100 x 850 x 1150	2500 x 850 x 1200	2750 x 920 x 1220	2750 x 920 x 1220	3650 x 1070 x 1370

All metals ranging from very soft to very hard like copper, brass, aluminium, mild steel, alloy steel, stainless steel can be cut very easily.
Can cut various sections including round, square, flat, angle, channel, pipes etc.
Efficient clamping vice to hold the workpiece firmly.
Precise and easy hydraulic feed control.
Bi-metal blade gives faster, smoother and accurate cutting.
Adjustable chrome plated blade guide units.
Auto machine off at the end of cut.
Low noise operation.
Swing cut feature provides faster cutting for larger cross-sectional sizes.
Spring tension to adjust the load of saw arm which facilitates the ease of operation for various size and types of materials.
Auto operated coolant pump.
6 months of warranty against any manufacturing defects.
