MAAN

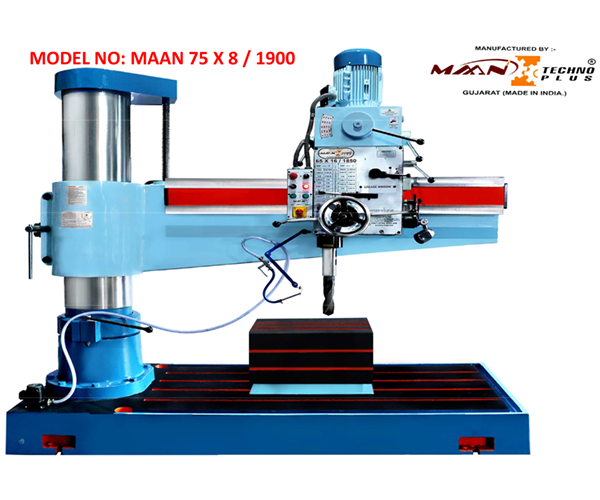

Geared Drilling Machine
| ITEM | MAAN 75 X 8 / 1900 |
|---|---|
| CAPACITY | 75 MM |
| DRILLING CAP. IN CAST IRON HAVING 180BHN | 90 MM |
| DRILLING CAP. IN MILD STEEL HAVING 200Mpa TENSILE STRENGTH | 75 MM |
| DRILLING CAP. IN STEEL HAVING 600Mpa TENSILE STRENGTH | 70 MM |
| TAPPING CAPACITY | 52 MM |
| LIGHT BORING CAPACITY | 160 MM |
| DRILLING HEAD TAPER IN SPINDLE [MORSE TAPPER] | MT-6 |
| DRILLING HEAD SPINDLE TRAVELS - AUTO/MANUAL | 325 MM |
| DRILLING HEAD NO. OF SPINDLE SPEEDS / RANGE | 8/20 - 1450 RPM |
| DRILLING HEAD NO. OF AUTO FEEDS / RANGE | 8/0.04 - 0.50 |
| ELECTRICAL POWER SUPPLY | 415V, 3PH, 50Hz |
| ELECTRICAL DRILLING HEAD MOTOR | 10HP [7.4Kw] |
| ELECTRICAL ARM ELEVATING MOTOR | 3HP [2.2kw] |
| WORKING RANGE DRILLING RADIUS [MIN. / MAX.] | 540/1905 MM |
| WORKING RANGE DISTANCE BETWEEN BASE PLATES TO SPINDLE [MIN. / MAX.] | 665/1500 |
| DRILLING HEAD TRAVERSE MAX [MANUAL] | 1370 MM |
| VERTICAL TRAVERSE OF ARM [AUTO] | 830 MM |
| ROTATION OF ARM [BOTH SIDE] | 0-180 DEG. |
| WORKING SURFACE [L x W] | 1830 x 1050 MM |
| NO. OF T - SLOTS & NOMINAL SIZE | 4/21 |
| WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] | 6000/7500 KGs |
| BOX TABLE SIZE [L x W x H] MM | 740 x 550 x 500 |
| WOODEN PACKING DIMENSION in CM [L x W x H]Approx | 304CM x 178CM X 292CM |
Salient features:
- Heavy Duty - 75mm drilling in Mild steel.
- 8step Spindle speeds and 8step auto feeds for drilling, tapping, reaming operations. This machine may be capable of drilling, milling, tapping, honing, counter-boring, spot- facing, reaming and boring and other similar utilities.
- Speeds can easily change.
- Made of high quality & Graded cast-iron with heavy-duty ribbing to ensure very low vibration.
- Thread tapping operation can be done in either rotation and working depth can be can be control using a positive stop gauge.
- Double column contraction for rigidity and effortless centering.
- Generously proportional & well adequately ribbed base plates, column and arm for maximum rigidity and minimum deflection.
- The high quality of this machine and its ease of operation make it suitable for use by student, amateurs and home hobbyists, as well as skilled technicians
- Tapper roller facility for better sliding of drill head on arm guide.
- Hardened and ground gears for minimum wear and tear.
- Precision hardened and ground spindle.
- Machine Tested as per IS: 2199 - 1982 standards.
- Optional Accessories (At Extra Price):
- Box Table
- Coolant Pump with Fitting
- Machine Light
- Drill Chuck with key & arbor
- Drill Sleeve [Reduction Sleeve]
- Drill Vice
- Special T-Bolts
- Foundation Bolt
- Service Tool
- Wooden Box Packing & Forwarding
NOTE: ALL THE ABOVE DESIGNS, DIMENSIONS AND DETAILS ARE APPRXIMATE ONLY AND WE RESERVE THE RIGHT TO ALTER THEM WITHOUT PRIOR NOTICE AS WE ARE IMPROVING THE DESIGN.

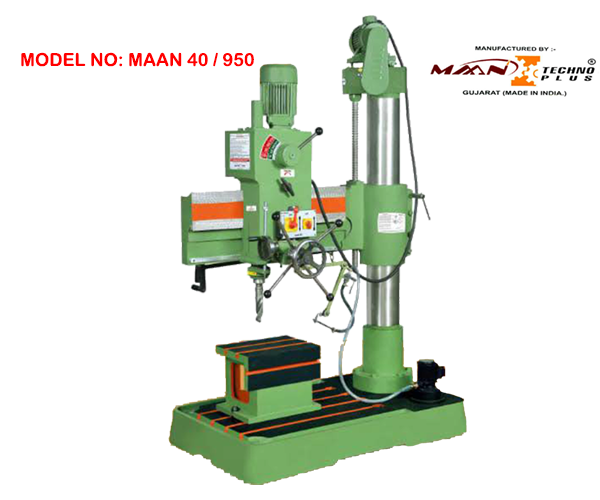

Cap. 40 mm All Geared Radial Drill Machine With Fine Feed And Electrical.
| ITEM | MAAN 40/950 |
|---|---|
| CAPACITY | 40 MM |
| DRILLING CAP. IN CAST IRON HAVING 180BHN | 42 MM |
| DRILLING CAP. IN MILD STEEL HAVING 500Mpa TENSILE STRENGTH | 40 MM |
| TAPPING CAPACITY | 25 MM |
| DRILLING HEAD TAPER IN SPINDLE [MORSE TAPPER] | MT - 4 |
| DRILLING HEAD SPINDLE TRAVELS - AUTO/MANUAL | 250 MM |
| DRILLING HEAD NO. OF SPINDLE SPEEDS / RANGE | 8/50 - 1750 RPM |
| DRILLING HEAD NO. OF AUTO FEEDS / RANGE | Manual (Fine Feed) |
| ELECTRICAL POWER SUPPLY | 415V, 3PH, 50Hz |
| ELECTRICAL DRILLING HEAD MOTOR | 2 HP |
| ELECTRICAL ARM ELEVATING MOTOR | 0.5 HP |
| WORKING RANGE DRILLING RADIUS [MIN. / MAX.] | 480/1050 MM |
| WORKING RANGE DISTANCE BETWEEN BASE PLATES TO SPINDLE [MIN. / MAX.] | 250/950 MM |
| DRILLING HEAD TRAVERSE MAX [MANUAL] | 565 MM |
| VERTICAL TRAVERSE OF ARM [AUTO] | 750 MM |
| COLUMN SLEEVE DIAMETER | 170 MM |
| ROTATION OF ARM [BOTH SIDE] | 0-180 DEG. |
| WORKING SURFACE [L x W] | 850 x 650 |
| NO. OF T – SLOTS & NOMINAL SIZE | 4/21 |
| WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] | 800/1000 KG |
| V - BELT SECTION OF ARM ELEVATOR MOTOR | A-25 / A-24 |
| BOX TABLE SIZE [L x W x H] MM | 400 x 300 x 300 |
| WOODEN PACKING DIMENSION in CM [L x W x H]Approx | 304CM x 178CM X 292CM |
Salient features:
- Main Spindle is made of "EN3l"material and hardness.
- MT-bore internally grinded.
- Accuraey and run out of 0.01 to 0.03 in main spindle shaft.
- Pinion Shaft is made of "EN24" material and hardness.
- Provided 4-8 Speeds by accurate balancinA.
- Spindle sleeve-grinded.
- Work light [As per requirement]
- full size work table With Accurate right-angled.[Surface Grinding is available as per your required]
- Tapper Roller facility for better slidinA of drill head on arm Auide
- coolant system [As per requirement]
- Adiustable depth control [with auto stop]
- Speeds can easily change
- Nitride hardened "Ram"
- All Qears are made of alloy steel [Gear Materiall, Heat treatment [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts.
- Ram is accurately Arinded and HoninA process is done in the bore body ContaininA "Ram".
- All the gears assemble in the machine are perfectly sized accardins:i to Requirement [Precision s:iearsl
- All Bearing [SKF/NSK [Japanl/NBC Bearing]
- Wooden case available on demand
- Standard Accessories:
- Electrical Consisting of Two Motors
- R/F Switch
- Wiring Etc.,
- Elevator Pulley
- Optional Accessories (At Extra Price):
- Box Table
- Coolant Pump with Fitting
- Machine Lamp
- Extra Column Height
- Drill Chuck with key & arbor
- Drill Sleeve
- Drill Vice
- Special T-Bolts
- Foundation Bolt
- Service Tool
- Wooden Box Packing & Forwarding
NOTE: ALL THE ABOVE DESIGNS, DIMENSIONS AND DETAILS ARE APPRXIMATE ONLY AND WE RESERVE THE RIGHT TO ALTER THEM WITHOUT PRIOR NOTICE AS WE ARE IMPROVING THE DESIGN.

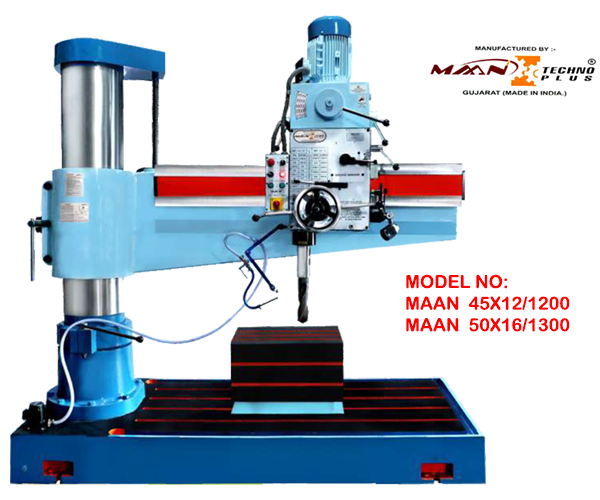

45 MM HEAVY DUTY AND 52MM EXTRA HEAVY DUTY ALL GEARED RADIAL DRILLING MACHINE WITH AUTO FEED AND DOUBLE COLUMN TYPE AND ELECTRICAL
| ITEM | MAAN 45X12/1200 | MAAN 50x16/1300 |
|---|---|---|
| CONTRUCTION TYPE | HEAVY DUTY | EXTRA HEAVY DUTY |
| CAPACITY | 45 MM | 52 MM |
| DRILLING CAP. IN CAST IRON HAVING 180BHN | 55 MM | 70 MM |
| DRILLING CAP. IN MILD STEEL HAVING 200Mpa TENSILE STRENGTH | 45 MM | 60 MM |
| DRILLING CAP. IN STEEL HAVING 600Mpa TENSILE STRENGTH | 42 MM | 52 MM |
| TAPPING CAPACITY | 35 MM | 45 MM |
| BORING IN STEEL | 100 MM | 140 MM |
| DRILLING HEAD TAPER IN SPINDLE [MORSE TAPPER] | MT - 4 | MT - 5 |
| DRILLING HEAD SPINDLE TRAVELS - AUTO/MANUAL | 285 MM | 325 MM |
| DRILLING HEAD NO. OF SPINDLE SPEEDS / RANGE | 8/35 - 1750 RPM | 16/30 - 1800 RPM |
| DRILLING HEAD NO. OF AUTO FEEDS / RANGE | 6/0.040 - 0.50 | 8/0.040 - 0.70 |
| ELECTRICAL POWER SUPPLY | 415V, 3PH, 50Hz 3HP [2.2KW] | 415V, 3PH, 50Hz 5HP [3.7KW] |
| ELECTRICAL DRILLING HEAD MOTOR | lHP [0.75KW] | 2HP [1.5KW] |
| ELECTRICAL ARM ELEVATING MOTOR | ||
| WORKING RANGE DRILLING RADIUS [MIN. / MAX.] | 345/1220 MM | 520/1600 MM |
| WORKING RANGE DISTANCE BETWEEN BASE PLATES TO SPINDLE [MIN. / MAX.] | 270/1000 MM | 630/1410 MM |
| DRILLING HEAD TRAVERSE MAX [MANUAL] | 870 MM | 1080 MM |
| VERTICAL TRAVERSE OF ARM [AUTO] | 730 MM | 800 MM |
| COLUMN SLEEVE DIAMETER | 250 MM | 300 MM |
| ROTATION OF ARM [BOTH SIDE] | 0-180 DEG. | 0-180 DEG. |
| WORKING SURFACE [L x W] | 1200 x 765 MM | 1410 x 960 MM |
| NO. OF T – SLOTS & NOMINAL SIZE | 3/20 | 4/21 |
| WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] | 1800/2500 KG | 3100/4200 KG |
| BOX TABLE SIZE [L x W x H] MM | 600 X 500 X 380 | 600 X 500 X 380 |
Salient features:
- Main Spindle is made of "EN3l"material and hardness.
- MT-bore internally grinded.
- Accuraey and run out of 0.01 to 0.03 in main spindle shaft.
- Pinion Shaft is made of "EN24" material and hardness.
- Provided 4-8 Speeds by accurate balancinA.
- Spindle sleeve-grinded.
- Work light [As per requirement]
- full size work table With Accurate right-angled.[Surface Grinding is available as per your required]
- Tapper Roller facility for better slidinA of drill head on arm Auide
- coolant system [As per requirement]
- Adiustable depth control [with auto stop]
- Speeds can easily change
- Nitride hardened "Ram"
- All Qears are made of alloy steel [Gear Materiall, Heat treatment [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts.
- Ram is accurately Arinded and HoninA process is done in the bore body ContaininA "Ram".
- All the gears assemble in the machine are perfectly sized accardins:i to Requirement [Precision s:iearsl
- All Bearing [SKF/NSK [Japanl/NBC Bearing]
- Wooden case available on demand
- Standard Accessories:
- Electrical Consisting of Two Motors
- R/F Switch
- Wiring Etc.,
- Elevator Pulley
- Optional Accessories (At Extra Price):
- Box Table
- Coolant Pump with Fitting
- Machine Lamp
- Extra Column Height
- Drill Chuck with key & arbor
- Drill Sleeve
- Drill Vice
- Special T-Bolts
- Foundation Bolt
- Service Tool
- Wooden Box Packing & Forwarding
Note:- We Reserve Right To Alter Or Modify Dimensions Without Prior Notice And 12% Variation Will Be In The Dimensions Of The Machine.

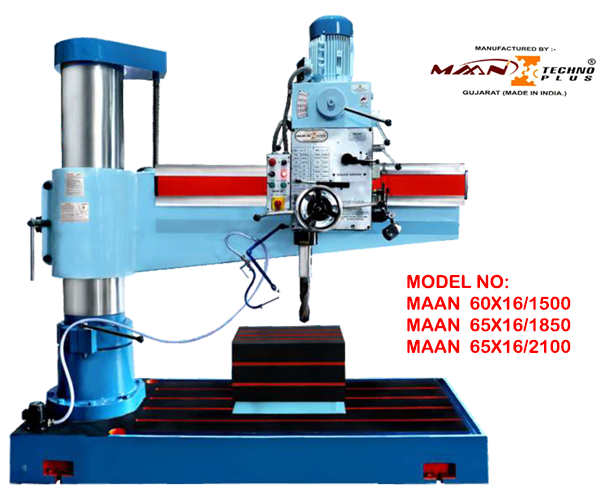

60MM HEAVY DUTY AND 65/70MM EXTRA HEAVY DUTY PRECISION ALL GEARED RADIAL DAILING MACHINE WITH AUTO FEED DOUBLE COLUMN SYSTEM AND ELECTRICAL.
| ITEM | MAAN 60X16/1500 | MAAN 65X16/1850 | MAAN 65X16/2100 |
|---|---|---|---|
| CONTRUCTION TYPE | HEAVY DUTY | EXTRA HEAVY DUTY | HEAVY DUTY |
| CAPACITY | 60 MM | 63 MM | 65 MM |
| DRILLING CAP. IN CAST IRON HAVING 180BHN | 70 MM | 80 MM | 75 MM |
| DRILLING CAP. IN MILD STEEL HAVING 200Mpa TENSILE STRENGTH | 62 MM | 70 MM | 65 MM |
| DRILLING CAP. IN STEEL HAVING 600Mpa TENSILE STRENGTH | 55 MM | 65 MM | 65 MM |
| TAPPING CAPACITY | 50 MM | 60 MM | 60 MM |
| LIGHT BORING CAPACITY | 120 MM | 140 MM | 140 MM |
| DRILLING HEAD TAPER IN SPINDLE [MORSE TAPPER] | MT - 5 | MT - 5 | MT - 5 |
| DRILLING HEAD SPINDLE TRAVELS - AUTO/MANUAL | 325 MM | 325 MM | 325 MM |
| DRILLING HEAD NO. OF SPINDLE SPEEDS / RANGE | 16/30 - 1450 RPM | 16/30 - 1450 RPM | 8/35 - 1250 RPM |
| DRILLING HEAD NO. OF AUTO FEEDS / RANGE | 8/0.050 - 0. 70 | 8/0.050 - 0. 50 | 8/0.050 - 0. 50 |
| ELECTRICAL POWER SUPPLY | 415V, 3PH,50Hz | 415V, 3PH,50Hz | 415V, 3PH,50Hz |
| ELECTRICAL DRILLING HEAD MOTOR | 5HP [3.7KW] | 6HP [4.5KW] | 7.5HP [5.5KW] |
| ELECTRICAL ARM ELEVATING MOTOR | 2HP [1.5KW] | 3HP [2.2KW] | 3HP [2.2KW] |
| WORKING RANGE DRILLING RADIUS [MIN. / MAX.] | 550/1500 MM | 555/1830 MM | 55/2100 MM |
| WORKING RANGE DISTANCE BETWEEN BASE PLATES TO SPINDLE [MIN. / MAX.] | 665/1380 MM | 665/1420 MM | 665/1420 MM |
| DRILLING HEAD TRAVERSE MAX [MANUAL] | 1000 MM | 1370 MM | 1620 MM |
| VERTICAL TRAVERSE OF ARM [AUTO] | 800 MM | 800 MM | 800 MM |
| ROTATION OF ARM [BOTH SIDE] | 0-180 DEG. | 0-180 DEG. | 0-180 DEG. |
| WORKING SURFACE [L x W] | 1400 x 960 MM | 1700 x 1050 MM | 2100 x 1050 MM |
| NO. OF T – SLOTS & NOMINAL SIZE | 4/21 | 4/21 | 4/21 |
| WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] | 3500/4300 KG | 5000/6100 KG | 6300/7500 KG |
| BOX TABLE SIZE [L x W x H] MM | 610 X 500 X 380 | 740 X 550 X 500 | 740 X 550 X 500 |
Salient features:
- Main Spindle is made of "EN3l"material and hardness.
- MT-bore internally grinded.
- Accuraey and run out of 0.01 to 0.03 in main spindle shaft.
- Pinion Shaft is made of "EN24" material and hardness.
- Provided 4-8 Speeds by accurate balancinA.
- Spindle sleeve-grinded.
- Work light [As per requirement]
- full size work table With Accurate right-angled.[Surface Grinding is available as per your required]
- Tapper Roller facility for better slidinA of drill head on arm Auide
- coolant system [As per requirement]
- Adiustable depth control [with auto stop]
- Speeds can easily change
- Nitride hardened "Ram"
- All Qears are made of alloy steel [Gear Materiall, Heat treatment [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts.
- Ram is accurately Arinded and HoninA process is done in the bore body ContaininA "Ram".
- All the gears assemble in the machine are perfectly sized accardins:i to Requirement [Precision s:iearsl
- All Bearing [SKF/NSK [Japanl/NBC Bearing]
- Wooden case available on demand
- Standard Accessories:
- Electrical Consisting of Two Motors
- R/F Switch
- Wiring Etc.,
- Elevator Pulley
- Optional Accessories (At Extra Price):
- Box Table
- Coolant Pump with Fitting
- Machine Lamp
- Extra Column Height
- Drill Chuck with key & arbor
- Drill Sleeve
- Drill Vice
- Special T-Bolts
- Foundation Bolt
- Service Tool
- Wooden Box Packing & Forwarding
Note:- We Reserve Right To Alter Or Modify Dimensions Without Prior Notice And 12% Variation Will Be In The Dimensions Of The Machine.
