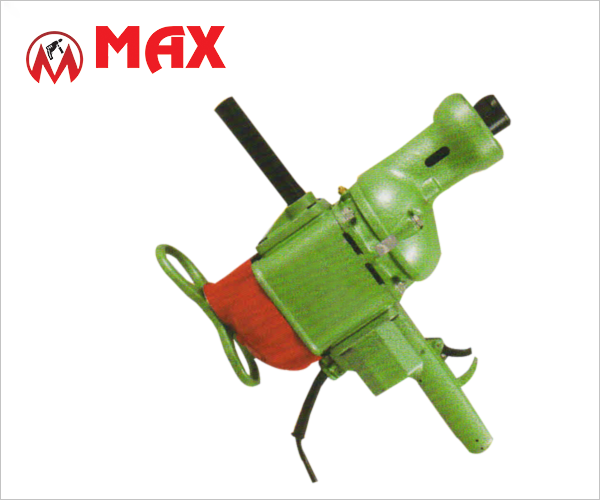

M6D 13 mm heavy duty drill
450 w, 730 rpm, 4.8kg
Metal bodied & long life rugged drill, suitable for general purpose work in building, plumbing, light engineering and maintenance work.

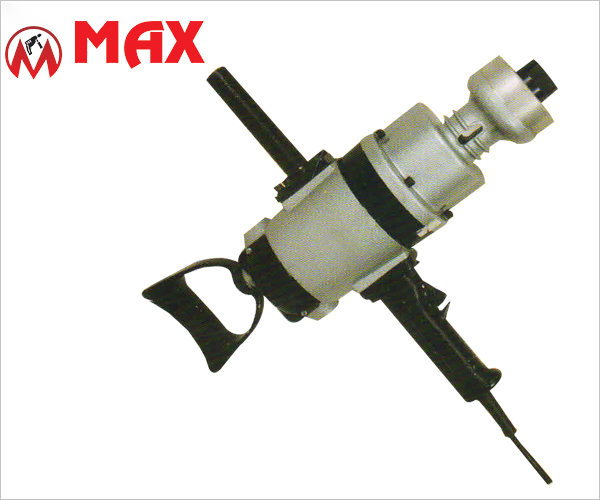

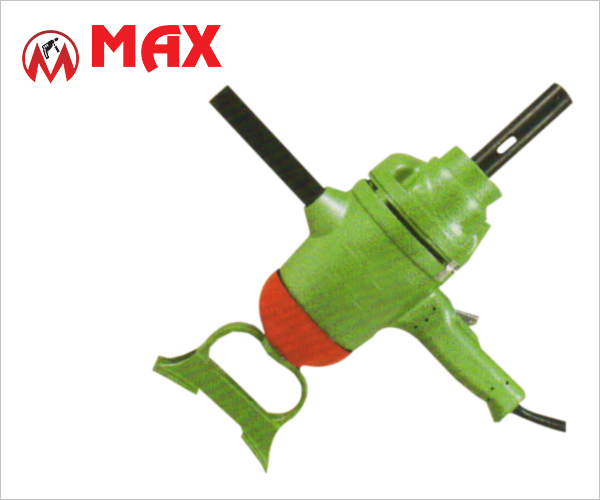

MD-1115mt 23mm heavy duty drill
1100 w, 500 rpm, 7.8 kg
Ideal for maximum capacity heavy duty drilling. Also as driving unit of cylinder honing equipment in structural engineering work. Useful for rail workshops, shipyards etc.
Also available in chuck model bd-1115 c for capacity up to 19mm in steel.
M8D 13 to 23 Heavy Duty Drill
600 W, 560 RPM, 8 Kg
Useful for general heavy duty work and also in structural engineering. Also available in Chuck model B8Dc for capacity up to 20mm in steel

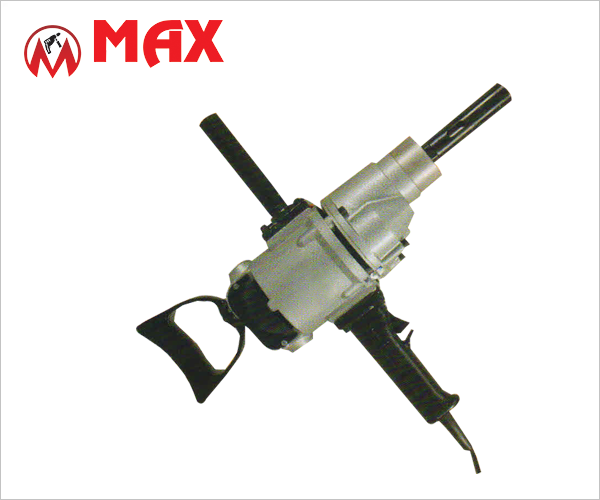

MW-10 31mm heavy duty drill
1100 w 350 RPM, 9 kg
It can be used for production line drilling in heavy engineering works, shipyards, mines, railways & transport workshops. It can also be used for honing & line boring purpose.
M9-1 - 25MM Heavy Duty Drill
660 W, 380 RPM, 10.6 Kg
M9-2 - 31MM Heavy Duty Drill
850 W, 280 RPM, 10.6 Kg
Useful for general heavy duty work in structural engineering, Shipyards, Mines, Railways and Transport workshops. It can also be used for honing & line boring purpose.
M-21 Blower
360 W, 155 M3/ Min
nozzzle air velocity 310 kmph, 4.7kg
 |
 |
|
| “V” type slide for elongated life | Powerful Electro Magnet for rigid clamping on job | |
 |
 |
 |
| Brass Sheet installed in guides ensures precision for long life | Universal Adaptor to be used to adjust varietyof Drills | Safety Chain for horizontal & overhead drilling |
| Company Name | Suitable for Model / Size | |||
| 1/2" to 29/32" 13 to 23mm |
3/4" 20mm |
1" 25mm |
1 1/4" 31mm |
|
| NIPPON | M8D | M8DC | M9-1 | M9-2 |
| NIPPON | MD-1115MT | MD-1115C | MW-10 | |
| NOVATRON | N8DA | N8DCA | N9-B1A | N9-B2A |
| KPT | HD1115MT | HD1115C | KW8 | KW10 |
| WOLF | WHD | WDHC | NW8 | NW10 |
Assembly with NIPPON Drills (Optional)

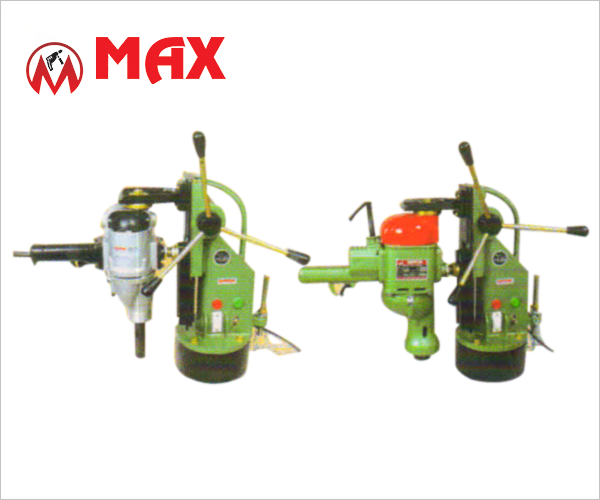

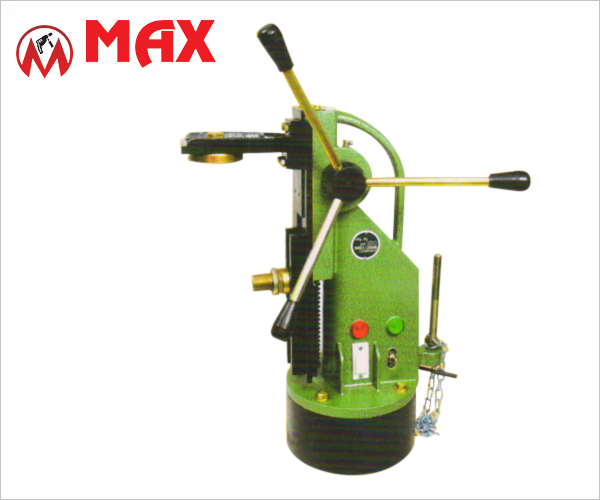

MDS-200
Heavy Duty Magnetic Drill Stand
Base Dia 200 MM, Height 520 MM, Stroke 275 MM, Current Draw 150 Watts, Magnet Pull 1000-1200 Kgf*
* Min. 3/4” thickness plate to be used for better pull as it varies with the thickness of job.

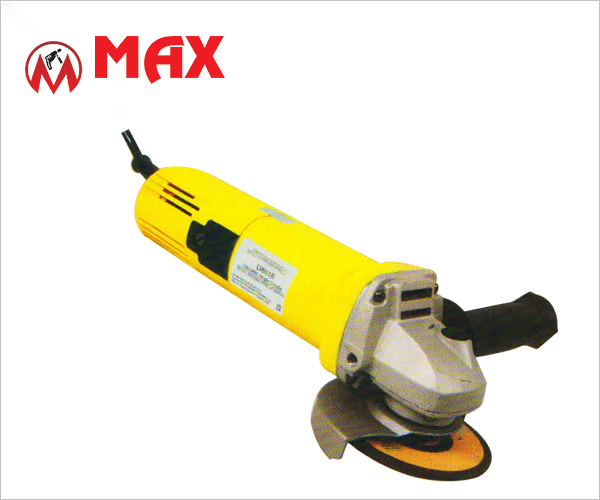

D801B100 MM ANGLE GRINDER
800 W, 11000 RPM, 1.8 KG
Combination of high power & high speed having versatile uses in cutting, grinding and weld dressing work. Low head gear box for ease of work in confined areas and tool-free adjustable guard for easily changing positions.
G15SB25MM DISC GRINDER
1200 W 18500 RPM, 3KG
G18SB180MM DISC GRINDER
2000 W, 8500 RPM, 5KG
Grinder having low gear head for tight work areas, dust proof construction for prolonged life and most powerful motor. It is considered for its compactness and maneuverability in major grinding applications.

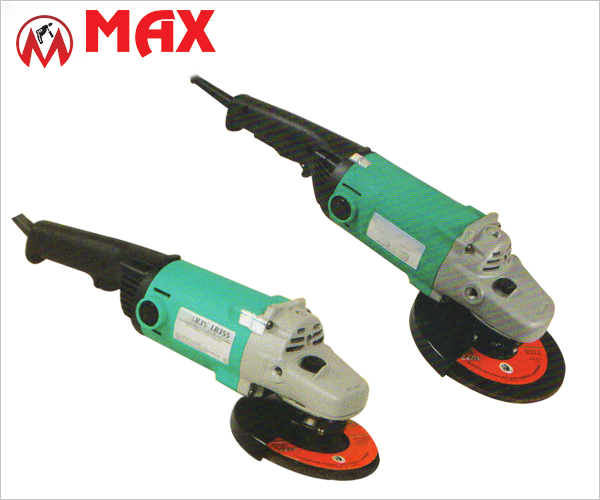

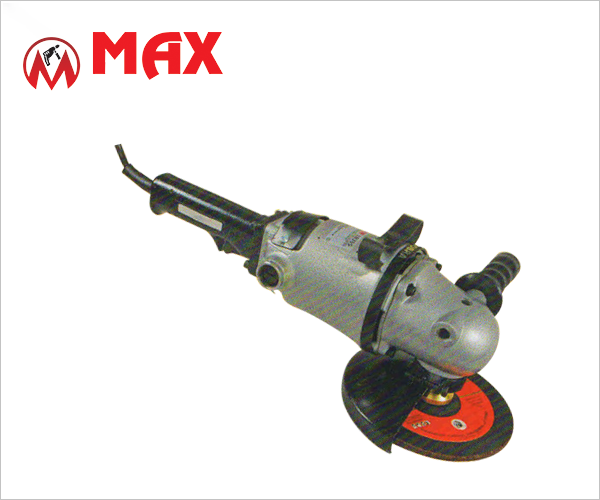

COBRA-7B180MM HIGH SPEED ANGLE GRINDER
2000 W, 8000 RPM, 6.9KG
COBRA -9B230MM HIGH SPEED ANGLE GRINDER
2000 W, 6000 RPM, 7.1 KG
Most sturdy & high performance metal bodied grinder having lightest weight in its category. It is extremely desired in heavy weld dressing work, foundry grinding and in cutting- off risers and runners. It has extra long life because of hardened spiral level gears.

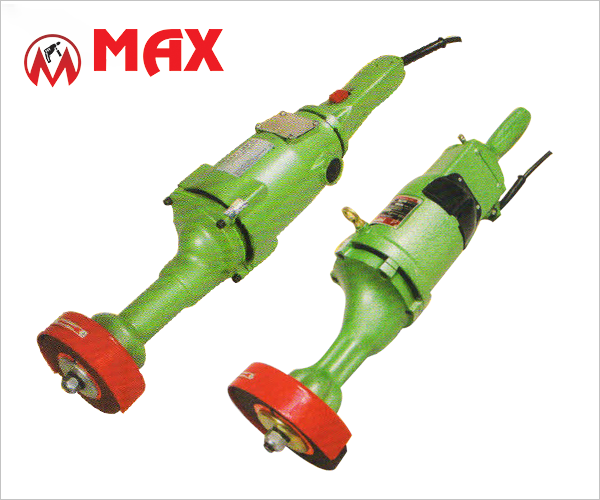

B13G100MM STRIGHT GRINDER
800 W, 5200 RPM, 5.6KG
B14G150MM STRIGHT GRINDER
1200 W, 5800 RPM, 11.3 KG
Constructed for heavy duty work for long life with lowest maintenance.suitable for weld dressing, general grinding applications in sheet metal & light engineering works. With proper attachements it can be used for buffing, polishing and even for sanding efficiently.

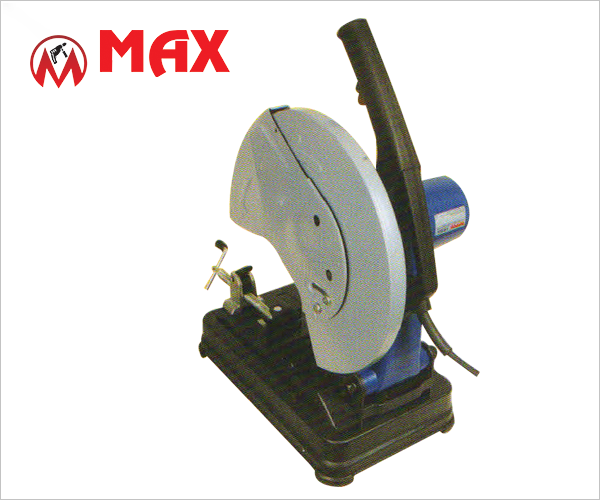

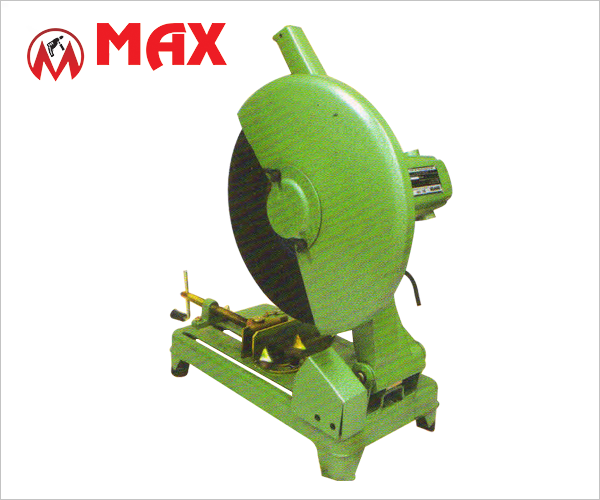

LB355 355 MM Cut Off Machine
2000 W, 38000 RPM 16.4 Kg
MU-14 355 MM Cut Off Machine
2000 W, 37000 RPM 17.5 Kg
Both these cut-off machines are suitable for cutting off round bars, pipes, shaped steel tubing, conduit and channels etc.

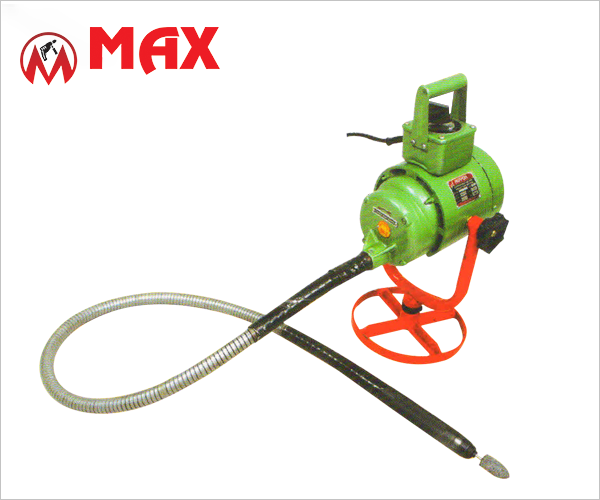

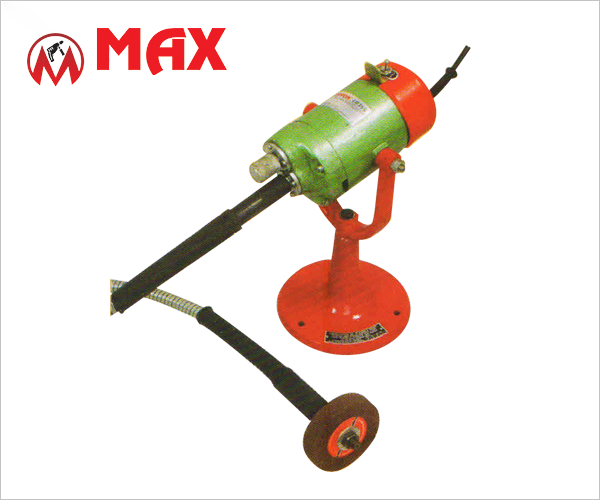

M-10G1 Flexible Shaft Grinder ( Single Speed)
380 W, 12000 Rpm, 8.6kg

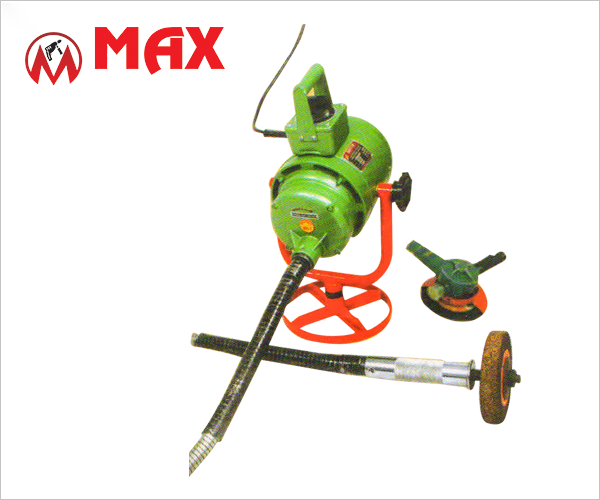

B-10G2 Flexible Shaft Grinder ( Double Speed)
380 W, 8.8 Kg
Speed : Grinding 12000 RPM, Milling 1250 RPM
MR-1 Single Speed Gear Machine
1.5 HP, 3 PH, 400/440 V, 5800 RPM
Supplied Without( Shaft & Tool Holder)
MR-2 Single Speed Gear Machine
1 –HP, 3PH, 400/440, 12000 RPM
Supplied Without( Shaft & Tool Holder)
Both these grinders have induction motors, so even on full load conditions speed doesn’t drop & better utilization for grinding media can be done.
