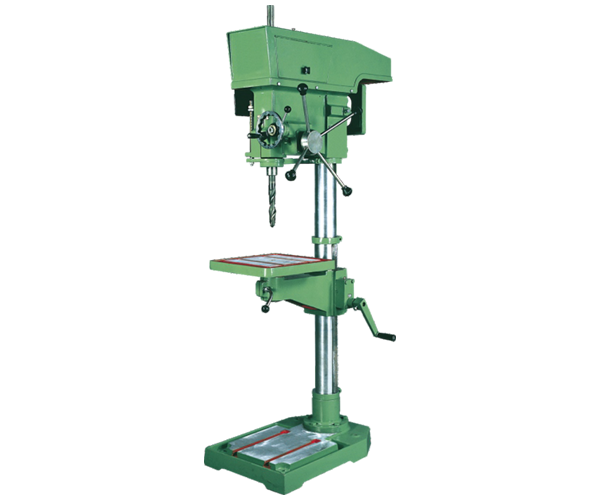

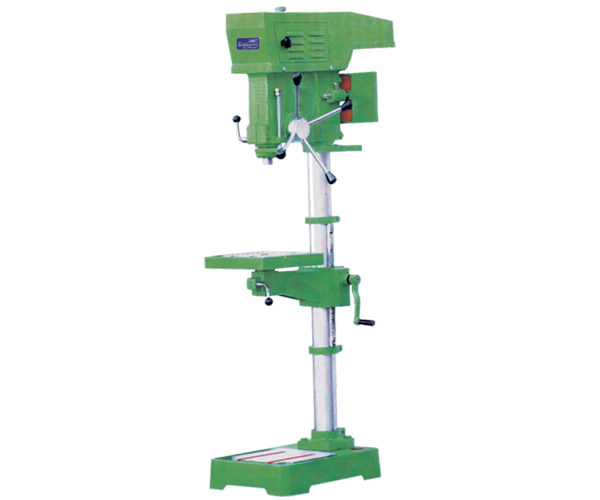

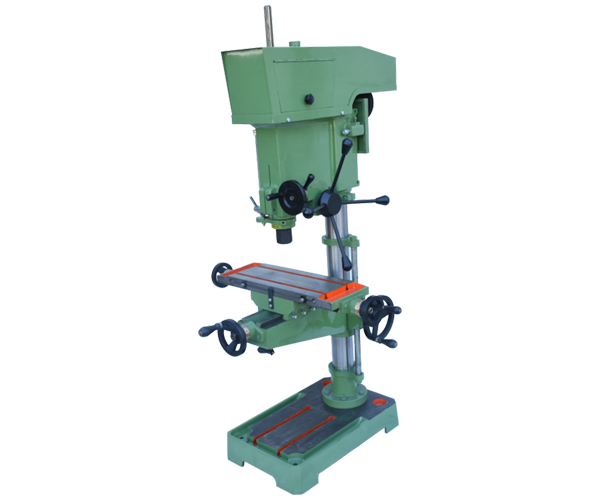

ITEM	SSC-S-13	SSC-P-4	SSC-SM-25	SSC-4	SSC-5/3
Drilling capacity	13 mm	19 mm	25 mm	32 mm	40 mm
Pillar Diameter	47 mm	74.30 mm	92 mm	106 mm	120 mm
Spindle nose to table distance	360 mm	660 mm	650 mm	650 mm	650 mm
Distance from spindle nose to base distance	550 mm	900 mm	1060 mm	1060 mm	1060 mm
Distance from spindle centre to pillar surface (in mm)	150 mm	200 mm	250 mm	375 mm	380 mm
Table travel	120 mm	381 mm	420 mm	420 mm	420 mm
Taper in spindle	6 J TAPAR	MT-3	MT-4	MT-4	MT-4
Number of speed	3 Speed	8 Speed	8 Speed	8 Speed	8 Speed
Range of Speed		87 to 3224	75 to 1970	75 to 1970	75 to 1970
Table size(in mm)	205 x 205	270 x 270	330 x 330	330 x 330	330 x 330
Base size (m/c area in mm)	180 x 200	480 x 300	365 x 580	465 x 730	465 x 730
Over all base size (in mm)	350 x 230	490 x 310	370 x 585	470 x 725	470 x 725
Spindle travel	75 mm	130 mm	240 mm	255 mm	255 mm
Pillar length	700 mm	1170 mm	1410 mm	1410 mm	1410 mm
Over all height with pulley guard	950 mm	1420 mm	1730 mm	1730 mm	1730 mm
V-Belt Secton	FHP-2360	A-42"	B-52"	B-62"	B-64"
Weight (Approx.)	40 to 45	100 to 105	220 to 230	330 to 340	330 to 340
Motor 1440 RPM 3 Phase 440 Volts	1/2 H.P.	0.5 H.P.	1 H.P.	1 H.P.	1 H.P.
Shipping wooden case inner size L x W x H		660 x 380 x 1440 mm	850 x 450 x 1770 mm	850 x 480 x 1770 mm

STANDARD ACCESSORIES : Motor pulley
OPTIONAL EQUIPMENTS : Electric Motor | R & F Switch | Drill Chuck & Arbour | Milling Compound Slide Coolant Pump With Tank | Drill Vice | Motor Belt | Machine Lamp
