Dipti - Bandsaw Machine

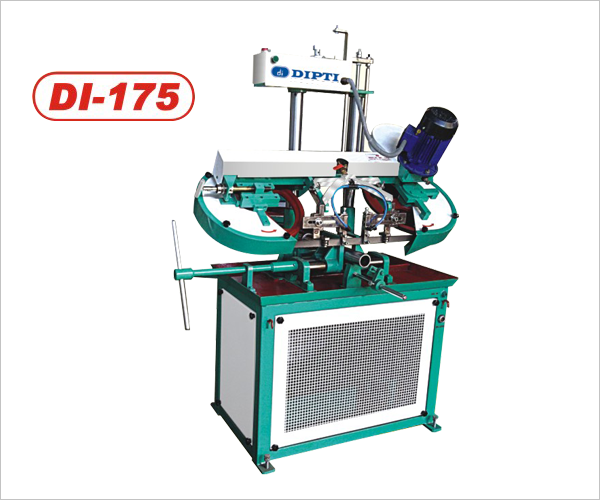

175 - Semi Hydraulic Bandsaw Machine
Discription:
- Cuts Round Bars, Square, Flats, Pipes, Angels, Channels.
- Cuts various type of materials like Mild Steel, Alloy Steel, Stainless Steel, Brass, Copper, Aluminum, etc
- Effeicient Clamping Vice.
- Precise & Easy Feed Control.
- Fast & Smooth Cutting.
- Bi-Metal Cutting Blade Has Optimum Working Capacity.
Technical Specification:
| Model | DI-175 / DI-175 SA |
| Cutting Capacity Round Bar(mm) | 175 |
| Square(mm) | 160 x 160 |
| Blade Size (mm) | 27 x 0.9 x 2515 |
| Motor Power | 1 HP/1440 RPM |
| Coolant Pump Power | 0.15HP/2800 RPM |
| Blade Speed (Min) | 42 |
| Net Weight | 210 Kg. |
| Overall Dimension | 1150 x 500 x1400 L W H |

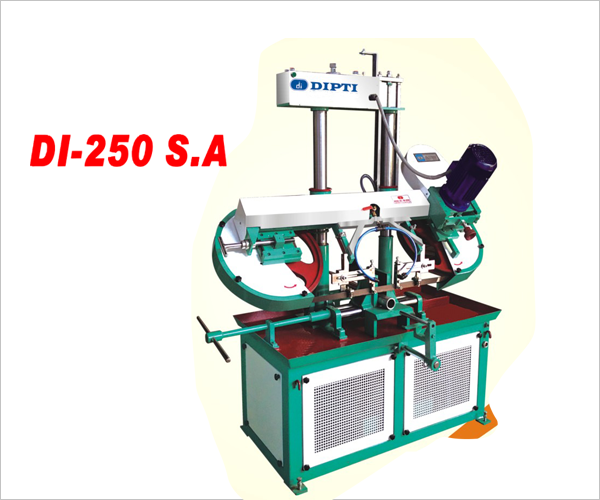

DI 250 S. A. - Semi Auto Bandsaw Machine
Features:
- Cuts Round Bars, Square, Flats, Pipes, Angels, Channels.
- Cuts Various type of materials like Mild Steel, Alloy Steel, Stainless Steel, Brass, Copper, Aluminum, etc
- Efficient Clamping Vice.
- Precise & Easy Feed Control.
- Fast & Smooth Cutting.
- Bi-Metal Cutting Blade Has Optimum Working Capacity.
Technical Specifications:
| Model | DI-250-S.A |
| Cutting Capacity Round Bar(mm) | 250 |
| Square(mm) | 220 x 220 |
| Blade Size (mm) | 27 x 0.9 x 3200 |
| Motor Power | 0.85 HP/1000RPM |
| Coolant Pump Power | 0.15HP/2800 RPM |
| Blade Speed (Min) | 26/36/48 |
| Net Weight | 340Kg. |
| Overall Dimension | 1450 x 600 x 1600 L W H |
