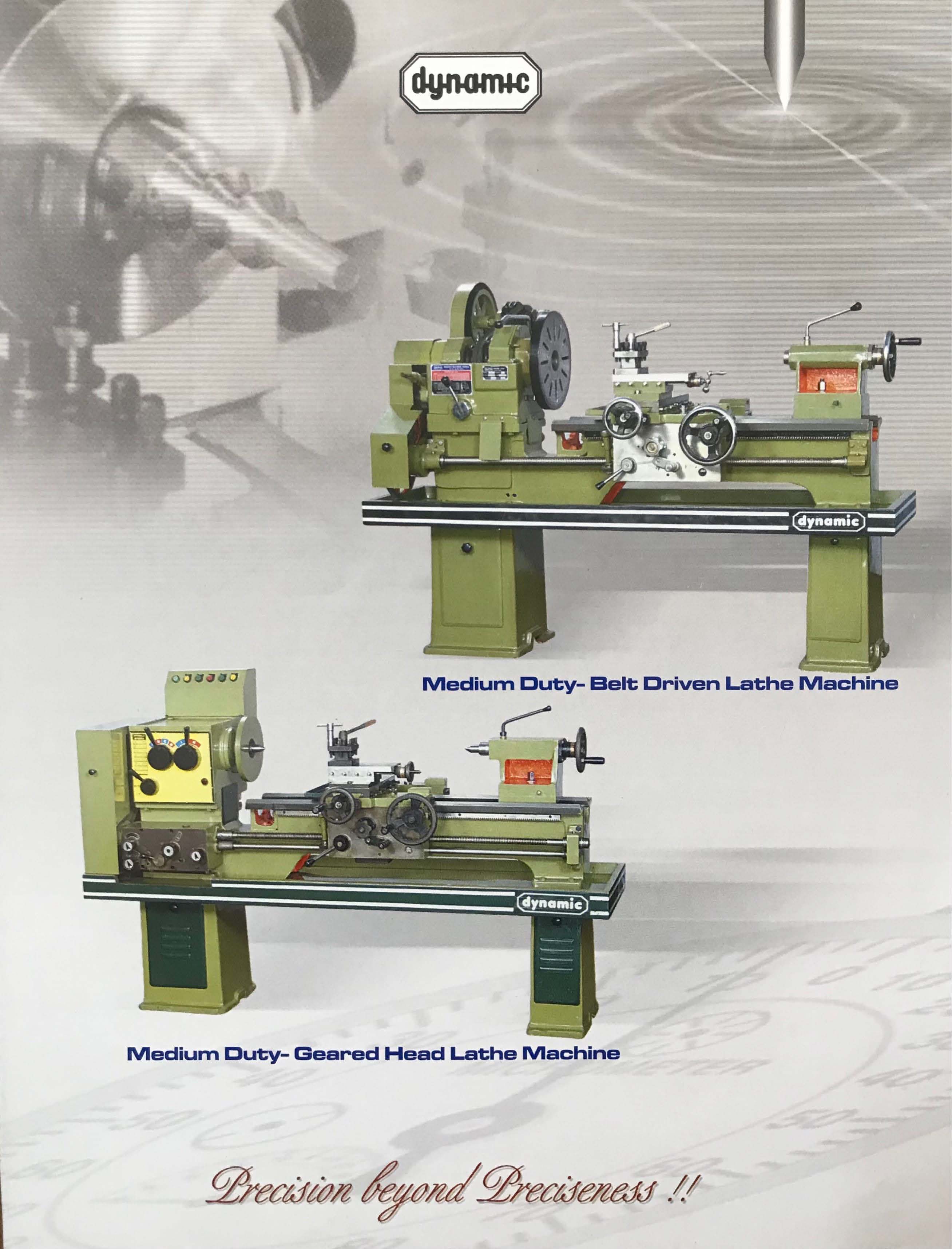

DYNAMIC MEDIUM LATHE MACHINE

Model	Geared Head	Belt Driven
HEIGHT OF CENTRE	215 MM	215 MM
ADMIT BETWEEN CENTRES	750 / 1000 MM	750 / 1000 MM
SWING OVER BED	430 MM	430 MM
SWING OVER CROSS SLIDE	280 MM	280 MM
SWING IN GAP	602 MM	620 MM
SPINDLE NOSE / BORE DIA.	MT-4 / 52 MM	MT-4 / 52 MM
SPINDLE DIA. / THREADS	75 MM / 6 T.P.I.	75 MM / 6 T.P.I.
SPINDLE SPEED NOS./ RANGE	8/40 - 1200 R.P.M.	6/40 - 550 R.P.M.
LEAD SCREW DIA. / THREAD	31. 75 MM / 4 T.P.I.	31. 75 MM / 4 T.P.I.
THREADING RANGE INCH	32 / 4 - 60 T.P.I.	23 / 4 - 40 T.P.I.
THREADING RANGE MM	24 / 0.5 - 7.5 M.M.	19 / 0.5 - 8.0 M.M.
TAIL STOCK RAM DIA./ TAPER	50.8 MM/ MT-4	50.8 MM/ MT-4
TAIL STOCK RAM TRAVEL	150 MM	150 MM
POWER	2 H.P. (1.5 KW) / 1440 R.P.M.	2 H.P. (1.5 KW) / 1440 R.P.M.
WEIGHT NET	700Kgs. / 750 Kgs.	650 Kgs. / 700 Kgs.
WEIGHT GROSS	900 Kgs. / 950 Kgs.	850 Kgs. / 900 Kgs.
FLOORSPACE 750	1950 X 970 M.M.	1950 X 970 M.M.
FLOORSPACE 1000	2100 X 970 M.M.	2100 X 970 M.M.

STANDARD ACCESSORIES:

• THREAD DIAL INDICATOR
• TOOL POST SPANNER
• TOOL POST
• CHUCK PLATE

OPTIONAL ACCESSORIES:

• FACE PLATE
• STEADY REST
• FOLLOW REST
• COOLANT ACCESSORIES
• TAPPER TURNING ATTACHMENT
• NORTON GEAR BOX
• MACHINE LAMP
• REAR TOOL POST

NOTE:
(1) NORTON GEAR BOX & 2 H.P. X 3 PHASE ELECTRICALS ARE STANDARD ACCESSORIES FOR GEARED HEAD LATHE.
(2) ABOVE SPECIFICATIONS ARE APPROXIMATE AND SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
(3) ALL ACCESSORIES SHOWN HEREWITH MAY NOT BE STANDARD ACCESSORIES.
