| SPECIFICATION | MINI 200 | MAX 200 | ARC 225IL |
| Input Voltage/Phase/Frequency | 230 / 1 / 50-60 | 230 / 1 / 50-60 | 230 or 415 / 1 / 50-60 |
| Output Current/Voltage/Duty Cycle | 200 / 28 / 40 | 200 / 28 / 60 | 225 / 29 / 60 |
| Amps Input At Rated Output | 31.1 | 31.1 | 36.3@230V / 20.1@415V |
| Output Range/OCV | 20-200 /65 | 20-200 /65 | 30-225 /75 |
| Dimension (mm) | 232*107*177 | 313*135*255 | 235*156*213 |
| Net Weight (kg) | 2.15 | 3.5 | 3.55 |
| SPECIFICTION | CUT 40 | CUT 60 | CUT 80 |
| Input Voltage/Phase/Frequency | 230 / 1 / 50-60 | 230 / 1 / 50-60 415 / 3 / 50-60 |
415 / 3 / 50-60 |
| Output Current/Voltage/Duty Cycle | 40 / 96 / 60 | 60 / 104 / 60 | 80 / 112 / 60 |
| Amps Input At Rated Output | 21 @ 40 | 35 @ 230V 19 @ 415V |
14.7 @ 80 |
| Output Range/OCV | 20-40 / 260 | 20-60 / 280 | 20-80 / 270 |
| Quality Cut/Max Cut(mm) | 6/10 | 12/16 | 20/30 |
| Dimension (mm) | 370*160*280 | 490*220*380 | 490*235*500 |
| Weight (kg) | 5.6 | 10.9 | 23.25 |

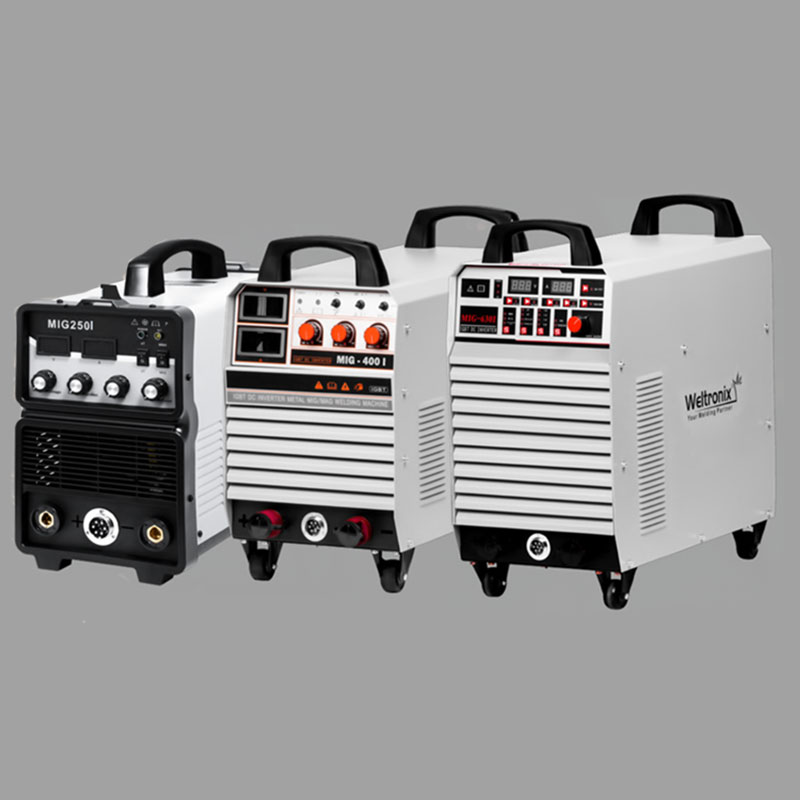

| SPECIFICATION | MIG 250I | MIG 250IL | MIG 400I | MIG 400D |
| Input Voltage/Phase/Frequency | 415 / 3 / 50-60 | 230/415 1P/3P 50-60 | AC 415 / 3 / 50-60 | AC 415 / 3 / 50-60 |
| Output Current/Voltage/Duty Cycle | 250 / 26.5 / 60 | 250 / 26.5 / 60 | 400 / 34 / 60 | 400 / 34 / 60 |
| Amps Input At Rated Output | 11.8 | 37@230V / 11.8@415V | 24.2 | 24.2 |
| Output Range/OCV | 50-250 /60 | 50-250 /60 | 60-400 / 60 | 60-400 / 60 |
| Dimension (mm) | 490*220*380 | 490*220*390 | 560*290*530 | 560*290*530 |
| Net Weight (kg) | 15 | 14.5 | 31.35 | 31.35 |

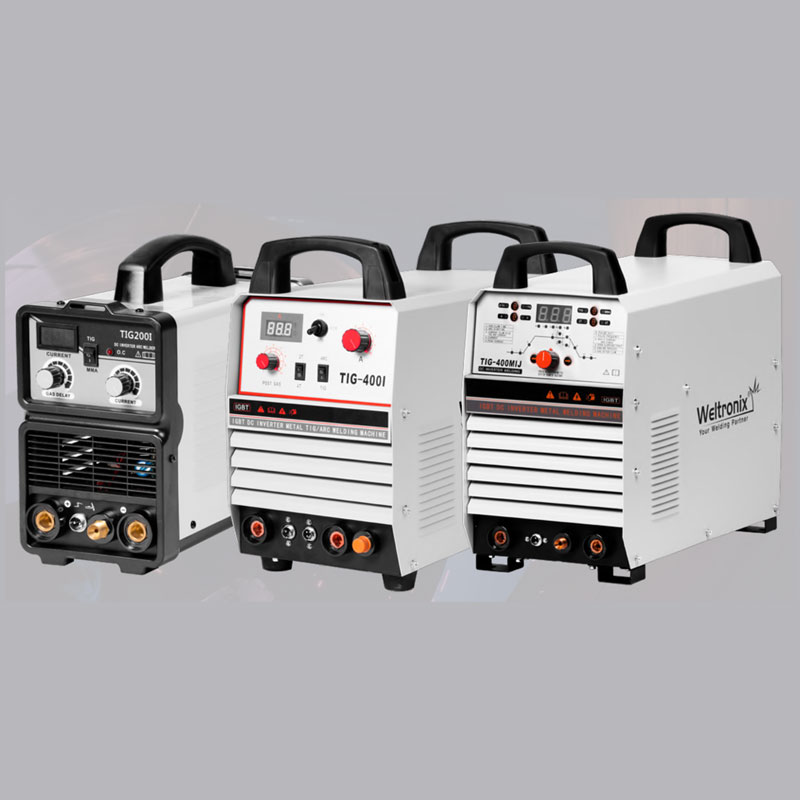

| SPECIFICATION | TIG 200I | TIG 300I |
| Input Voltage/Phase/Frequency(V/P/HZ) | 230 / 1 / 50-60 | 415 / 3 / 50-60 |
| Output Current/Voltage/Duty Cycle(A/V/%) | 200 / 18 / 60 | 330 / 23.2 / 60 |
| Amps Input At Rated Output(A) | 20A@160A | 13.62A |
| Output Range/OCV(A/V) | 10-200A / 58V | 10-330A / 65V |
| Dimension (mm) | 370*160*280 | 490*220*380 |
| Weight (kg) | 5.6 | 13 |
