PPARMAR Radial Drilling Machine

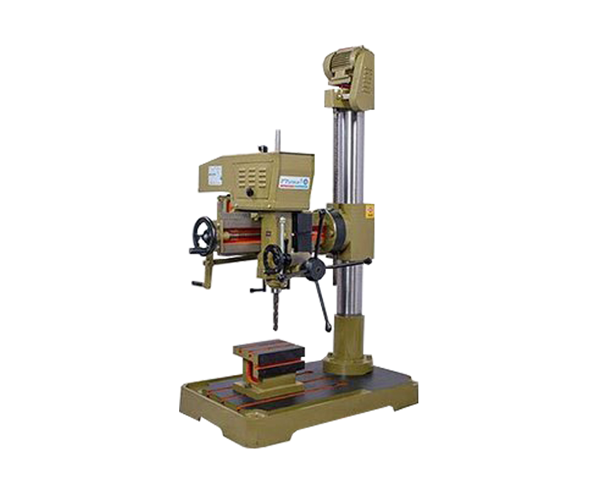

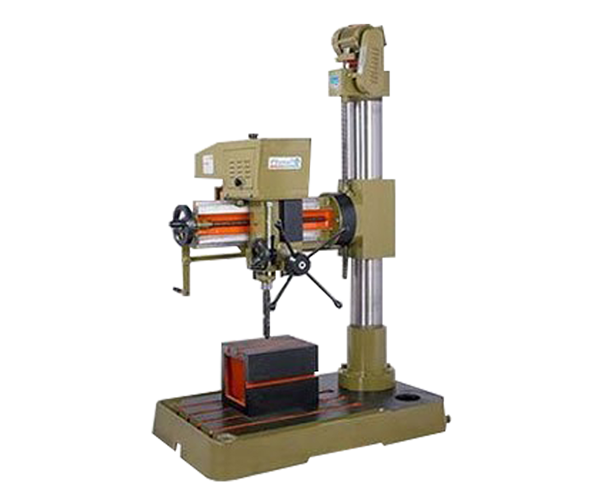

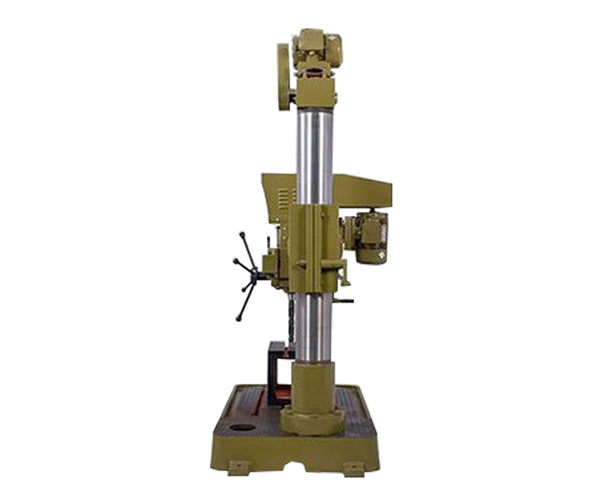

Specification	RADIAL DRILL R-25	RADIAL DRILL R-40	RADIAL DRILL R-40A
Tilting working table	-	-	-
Drilling capacity	25 mm	40 mm	40 mm
Pillar Diameter	130 mm	170 mm	170 mm
Spindle nose to table distance	675 mm	705 mm	705 mm
Distance from spindle nose to base distance	875 mm	995 mm	995 mm
Distance from spindle center to pillar surface	635 mm (MAX)	790 mm (MAX)	790 mm (MAX)
Table Travel	-	-	-
Taper in spindle	MT - 3	MT - 4	MT - 4
Number of speed	8 Speed	8 Speed	8 Speed
Range of Speed (RPM)	130 to 2600	70 to 2000	70 to 2000
Table Size (in mm)	200 X 200 X 250	380 X 300 X 300	380 X 300 X 300
Base size (Machined Area mm)	585 x 915	735 x 1240	735 x 1240
Overall Base Size (in mm)	610 x 940	745 x 1260	745 x 1260
Spindle Travel	185 mm	215 mm	215 mm
Pillar Length	1265 mm	1490 mm	1490 mm
Overall height with pulley guard	1700 mm	1960 mm	1960 mm
V-Belt section	B-43" & A-23"	B-45" & A-24"	B-45" & A-24"
Weight (Approx.)	475 Kg.	800 Kg.	800 Kg.
Motorl 440 RPM 3 Phase 440 volts	1 HP & 0.5 HP	1 HP & 0.5 HP	1 HP & 0.5 HP
Shipping Wooden Case Inner Size L x W x H (in mm)	1030 X 770 X 1770	1300 X 940 X 2100	1300 X 940 X 2100

Main Spindle and pinion made from EN steel by forging.
Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel.
Main spindle run out is checked for accuracy as per IS 2199.
For the smooth sliding of sliding arms, special � slide-reliever-slots' are given.
All moving parts are fine-finished with grinding to a close tolerance.
International technic of 'Taper wedge setting'. for complete slide-setting instead of normal one point setting.
Quality bearings with grease bath. so for permanent oiling.
Main gear and pulley are perfectly balanced.
All gears are made from SGI casting.
Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating.
