RalliWolf - Magnetic Core Drilling Machine

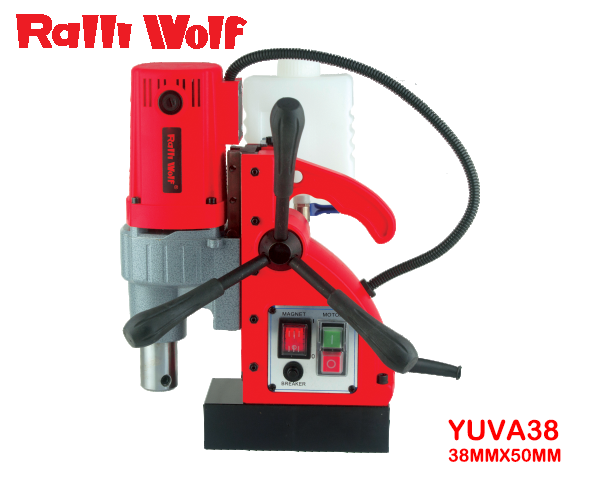

YUVA38 - 38mmx50mm
| Voltage | 230 V |
| Watts Input (Full load) | 1300 W |
| No load RPM | 700 RPM |
| Variable/Reversible | Single Speed |
| Magnetic Adhesion | 1226.7 Kgf |
| Magnetic Adhesion | 12000 N |
| Max Core Drilling Capacity | 38x50 MM |
| Adaptor Size | Self 19.05 MM |
| Twist Drill Capacity | 13 MM |
| Weight (without accessories) | 10.5 Kg. |
Standard Accessories:
- Coolant bottle
- Metal Chips Pick Up
- Allen Key - 2 No
- Work Locating Fix Pin
- 13mm Drill Chuck with Key
- Safety Rope
- Chuck Adaptor
COMMANDO 40S - 40mmx50mm
| Voltage | 230 V |
| Watts Input (Full load) | 1100 W |
| No load RPM | 270 to 610 RPM |
| Variable/Reversible | Variable |
| Speed selection | 6 speed |
| Magnetic Adhesion | 815.7 Kgf |
| Magnetic Adhesion | 8000 N |
| Max Core Drilling Capacity | 40x50 MM |
| Adaptor Size | Self 19.05 MM |
| Twist Drill Capacity | 13 MM |
| Stroke | 85 MM |
| Magnet size (LxWxH) | 165 x 80 x 45 MM |
| Weight (without accessories) | 13.7 Kg. |
Standard Accessories:
- Allen Key - 2no.
- Coolant bottle
- Safety Belt
- Drift-1no
- 13mm Drill Chuck with Key
- Drill Chuck Holder

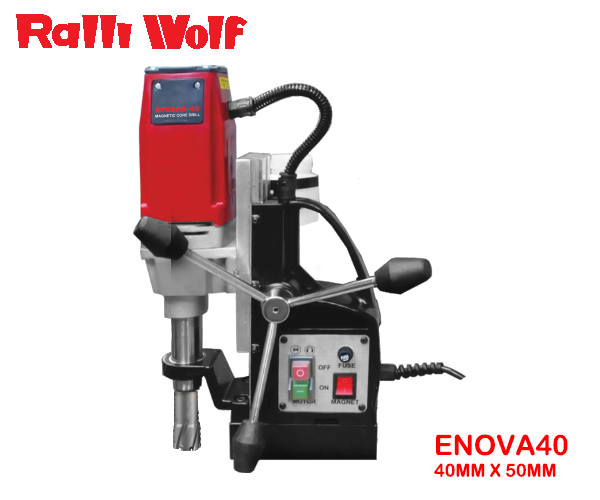

ENOVA40 - 40mmx50mm
| Voltage | 235 V |
| Watts Input (Full load) | 1200 W |
| No load RPM | 400 RPM |
| Variable/Reversible | Single Speed |
| Magnetic Adhesion | 1100 Kgf |
| Magnetic Adhesion | 10787 N |
| Max Core Drilling Capacity | 40x50 MM |
| Adaptor Size | Self 19.05 MM |
| Stroke | 97 MM |
| Magnet size (LxWxH) | 165 x 80 x 45 MM |
| Weight (without accessories) | 13.2 Kg. |
Standard Accessories:
- Coolant bottle - 1 No
- Allen Key - 1 No
- Safety chain - 1 No.
- Side arm - 3 nos.

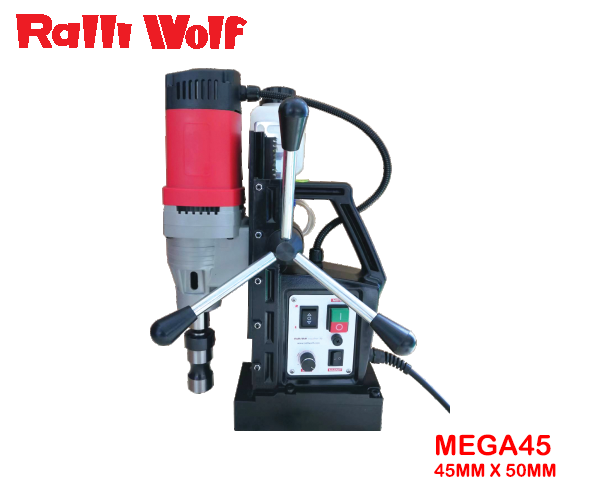

MEGA45 - 45mmx50mm
| Voltage | 235 V |
| Watts Input (Full load) | 1380 W |
| No load RPM | 100 to 470 RPM |
| Variable/Reversible | Variable/Reversible |
| Speed selection | Variable |
| Magnetic Adhesion | 1682.5 Kgf |
| Magnetic Adhesion | 16500 N |
| Max Core Drilling Capacity | 45x50 MM |
| Adaptor Size | MT2 |
| Twist Drill Capacity | 19 MM |
| Tapping capacity | M3 to M12 |
| Stroke | 210 MM |
| Magnet size (LxWxH) | 202 x 102 x 45 MM |
| Weight (without accessories) | 17 Kg. |
Standard Accessories:
- Side arm -3 no.
- Allen Key - 2no.
- Coolant bottle - 1no.
- Safety Belt - 1no.
- Drift - 1no.
- 13mm chuck with Key
- Drill Chuck Arbour MT-2 B16 -1no.
- MT-2 (19.05MM) Adeptor "For Core Drilling" - 1no.
- Pilot Pin - 1no.
- Fuse - 2 no.

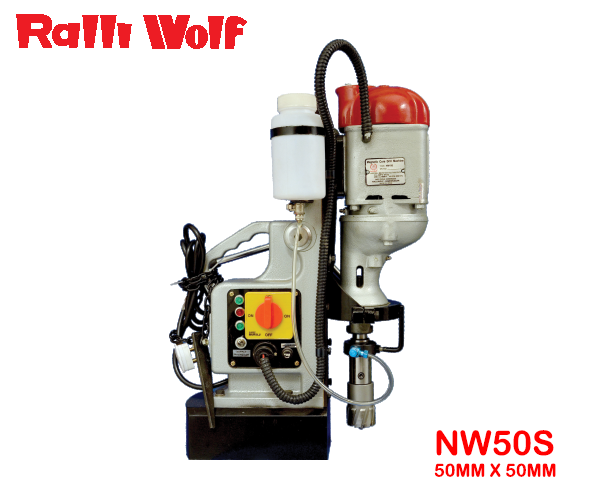

NW50S - 50mmx50mm
| Voltage | 235 V |
| Watts Input (Full load) | 1600 W |
| Full load Amps. | 8.0 A |
| No load RPM | 450 RPM |
| Variable/Reversible | Single Speed |
| Magnetic Adhesion | 1500 Kgf |
| Magnetic Adhesion | 14709 N |
| Max Core Drilling Capacity | 50x50 MM |
| Adaptor Size | MT3 |
| Twist Drill Capacity | 20 MM |
| Stroke | 125 MM |
| Magnet size (LxWxH) | 200 x 100 x 85 MM |
| Weight (without accessories) | 31 Kg. |
Standard Accessories:
- Side arm -3 no.
- Allen Key - 2no.
- Coolant bottle - 1no.
- Safety chain - 1no.
- Drift - 1no.
- Adaptor MT3 - 1no.
- Spanner 10*13 - 1no.
- Bracket - 1no.
- Tubuler Handle - 1no.
- Screws & Washer - 4no.

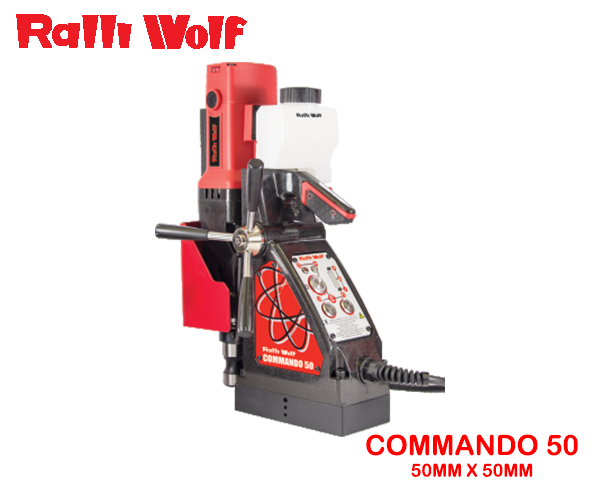

COMMANDO 50 - 50mmx50mm
| Voltage | 230 V |
| Watts Input (Full load) | 1500 W |
| No load RPM | 100 to 265 RPM, 200 to 500 RPM |
| Variable/Reversible | Variable/Reversible |
| Speed selection | 6 speed |
| Magnetic Adhesion | 1376.6 Kgf |
| Magnetic Adhesion | 13500 N |
| Max Core Drilling Capacity | 50x50 MM |
| Adaptor Size | MT2 |
| Twist Drill Capacity | 23 MM |
| Tapping capacity | M20 |
| Stroke | 166 MM |
| Magnet size (LxWxH) | 200 x 98 x 40 MM |
| Weight (without accessories) | 15.8 Kg. |
Standard Accessories:
- Side arm -3 no.
- Allen Key - 2no.
- Coolant bottle - 1no.
- Safety Belt - 1no.
- Drift - 1no.
- 13mm chuck with Key
- MT-2 (19.05MM) Adeptor "For Core Drilling" - 1no.
- Spare C/B set-1 pair
- Eye bolt -2 no.
- Safety Goggle-1no.
- Adaptor MT2-1no.

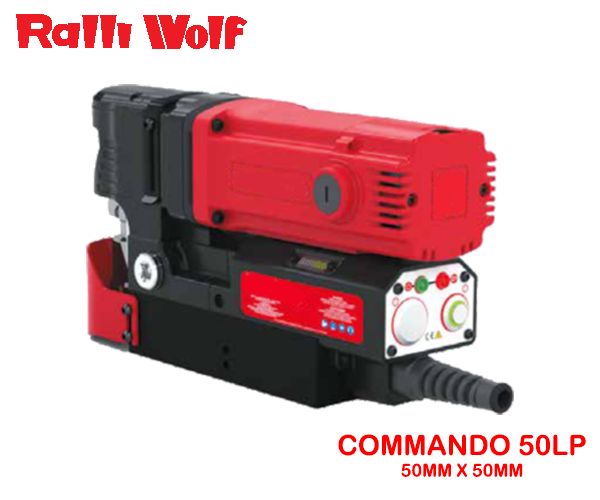

COMMANDO 50LP - 50mmx50mm
| Voltage | 230 V |
| Watts Input (Full load) | 1200 W |
| No load RPM | 250 to 500 RPM |
| Variable/Reversible | Variable |
| Speed selection | 6 speed |
| Magnetic Adhesion | 1376.6 Kgf |
| Magnetic Adhesion | 10000 N |
| Max Core Drilling Capacity | 50x50 MM |
| Adaptor Size | Self 19.05 mm |
| Magnet size (LxWxH) | 192 x 82 MM |
| Weight (without accessories) | 11 Kg. |
Standard Accessories:
- Allen Key-1no.
- Coolant bottle-1no.
- Ratchet Handle-1no.
- Safety Belt-1no.
- Safety Goggle-1no.
- Spare C/B set-1 pair

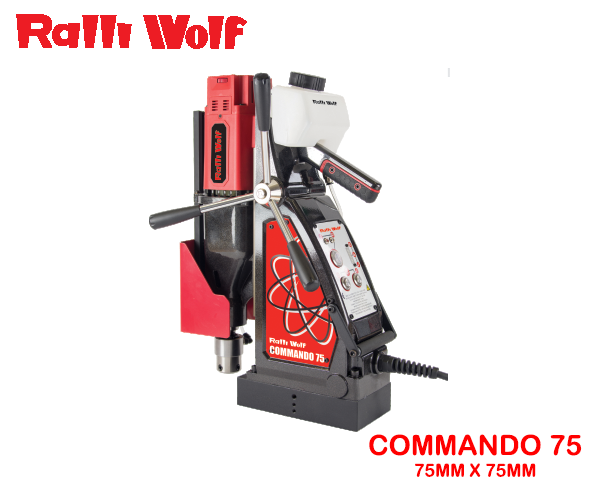

COMMANDO 75 - 75mmx75mm
| Voltage | 230 V |
| Watts Input (Full load) | 1800 W |
| Full load Amps. | 8.6 A |
| No load RPM | 70 to 180 RPM, 200 to 500 RPM |
| Variable/Reversible | Variable/Reversible |
| Speed selection | 2 speed |
| Magnetic Adhesion | 1886.5 Kgf |
| Magnetic Adhesion | 18500 N |
| Adaptor Size | MT3 |
| Twist Drill Capacity | 26 MM |
| Tapping capacity | M24 |
| Stroke | 240 MM |
| Magnet size (LxWxH) | 220 x 114 x 45 MM |
| Weight (without accessories) | 22.8 Kg. |
Standard Accessories:
- Side arm - 3 no.
- Allen Key - 2no.
- Coolant bottle - 1no.
- Safety Belt - 1no.
- Drift - 1no.
- 16mm chuck with Key - 1no.
- Drill Chuck Arbour MT-3 B16 - 1no.
- Eye bolt - 2 no.
- Safety Goggle - 1no.
- Pilot Pin - 1no.
- MT-3 (19.05MM) Adeptor "For Core Drilling" - 1no.
- MT-3 (31.75MM) Adeptor "For Core Drilling" - 1no.

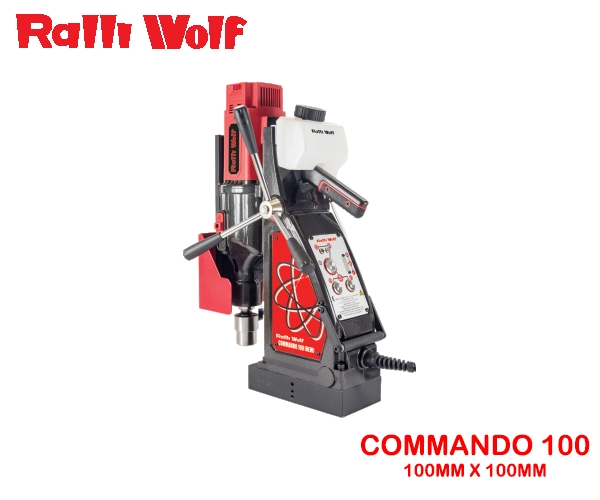

COMMANDO 100 - 100mmx100mm
| Voltage | 230 V |
| Watts Input (Full load) | 2000 W |
| No load RPM | 45 to 129 RPM, 70 to 208 RPM 150 to 434 RPM, 240 to 700 RPM |
| Variable/Reversible | Variable/Reversible |
| Speed selection | 4 speed |
| Magnetic Adhesion | 2039.4 Kgf |
| Magnetic Adhesion | 20000 N |
| Adaptor Size | MT3 |
| Twist Drill Capacity | 32 MM |
| Tapping capacity | M30 |
| Stroke | 264 MM |
| Magnet size (LxWxH) | 228 x 114 x 50 MM |
| Weight (without accessories) | 24.8 Kg. |
Standard Accessories:
- Side arm - 3 no.
- Allen Key - 2no.
- Coolant bottle - 1no.
- Safety Belt - 1no.
- Drift - 1no.
- 16mm chuck with Key - 1no.
- Drill Chuck Arbour MT-3 B16 - 1no.
- Eye bolt - 2 no.
- Safety Goggle - 1no.
- Pilot Pin - 1no.
- MT-3 (19.05MM) Adeptor "For Core Drilling" - 1no.
- MT-3 (31.75MM) Adeptor "For Core Drilling" - 1no.

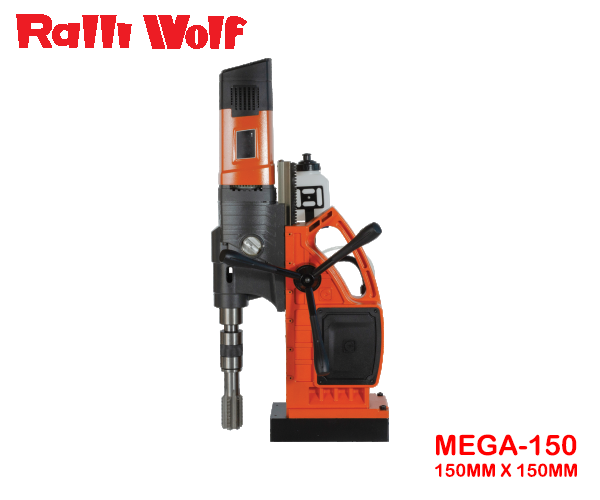

MEGA-150 - 150mmx150mm
| Voltage | 230 V |
| Watts Input (Full load) | 3080 W |
| No load RPM | 40 to 100 RPM, 70 to 180 RPM 180 to 450 RPM, 290 to 720 RPM |
| Variable/Reversible | Variable/Reversible |
| Speed selection | 4 speed |
| Magnetic Adhesion | 2498.3 Kgf |
| Magnetic Adhesion | 24500 N |
| Adaptor Size | MT4 |
| Twist Drill Capacity | 57 MM |
| Tapping capacity | M50 |
| Stroke | 360 MM |
| Magnet size (LxWxH) | 245 x 125 x 50 MM |
| Weight (without accessories) | 32 Kg. |
Standard Accessories:
- Side arm - 3 no.
- Safety belt- 1no.
- M2 Wrench-1no.
- M3 Wrench-1no.
- M4 Wrench-1no.
- Drift - 1no.
- Coolant bottle-1no.
- Pilot Pin - 1no.
- MT-4 (19.05MM) Adeptor "For Core Drilling" - 1no.
- MT-4 (31.75MM) Adeptor "For Core Drilling" - 1no.
