SAW Welding Machine – Complete Range of Submerged Arc Welding Machines for Heavy Industrial Applications
Jayendra Sales Corporation is a leading SAW welding machine supplier, manufacturer & distributor in India. We offer the premium Preciweld MZ series of Submerged Arc Welding (SAW) machines – from MZ 800 for medium-heavy fabrication to MZ 1250 and MZ 1600 for heavy-duty industrial applications. SAW welding is the preferred process for thick-section welding, offering high deposition rates (up to 10 kg/hour), deep penetration, spatter-free welds, and no visible arc flash, making it ideal for shipbuilding, wind tower fabrication, pressure vessels, heavy structural steel, and large-diameter pipe mills.
Whether you are in Ahmedabad, Mumbai, Delhi, Chennai, Kolkata, Bengaluru, Hyderabad, Pune, Visakhapatnam, Vadodara, Rajkot, Coimbatore, Ludhiana, or any other industrial city across India, we ensure timely delivery, installation, and after-sales service for your SAW welding machine requirements. Our pan-India service network covers all states and union territories, making us the trusted choice for SAW welding machine suppliers, manufacturers & distributors across India.
Why Choose Preciweld MZ Series SAW Welding Machines from Jayendra Sales Corporation?
Submerged Arc Welding (SAW) is the backbone of heavy fabrication industries. Preciweld MZ series SAW welding machines are engineered with advanced IGBT inverter technology, providing unmatched performance, energy efficiency, and durability for continuous heavy-duty welding operations. As a trusted SAW welding machine supplier in India, we cater to diverse sectors including shipbuilding, wind energy, pressure vessel manufacturing, heavy engineering, structural steel fabrication, and large-diameter pipe production. Key features of our SAW welding machines include:
- High Deposition Rate: Up to 10 kg/hour – 3 to 5 times faster than manual arc welding processes
- Deep Penetration: Single-pass welding on plates from 8mm to 20mm+ thickness
- Spatter-Free Welds: No visible spatter, minimal post-weld cleaning, superior bead appearance
- No Arc Flash: Flux blanket eliminates arc flash, improving operator safety
- IGBT Inverter Technology: Energy-efficient operation with up to 88% efficiency and 0.93 power factor
- Multi-Process Capability: SAW, MMA (Stick), and Carbon Arc Gouging in a single machine
- Automatic Voltage/Current Control: Constant Voltage (CV) and Constant Current (CC) modes for consistent weld quality
- Over-Voltage & Over-Heat Protection: Auto cutoff for long machine life and operator safety
- Dust-Free Cooling System: Forced air cooling with dust protection for extended operation in industrial environments
- Wide Current Range: 112A to 1250A (MZ 1250 model) for welding various plate thicknesses

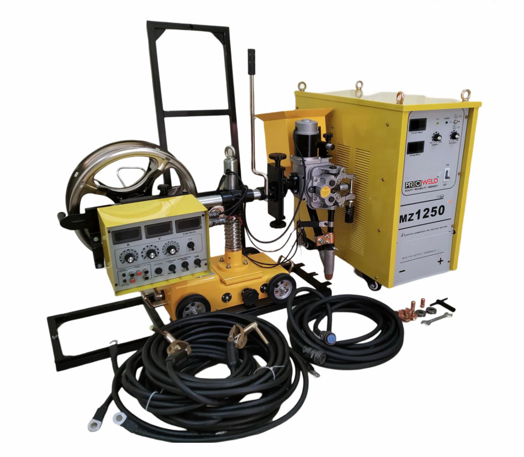

- Compatibility with SAW Carriages: Works with automatic welding tractors, beam track systems, and flux recovery units
Complete SAW Welding Machine Range – Models & Specifications

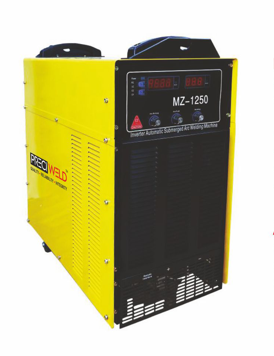

Preciweld MZ 1250 SAW (Standard IGBT)
- Input Power Voltage: 3-380V ±15%, 50/60 Hz
- Rated Input Capacity: 78 KVA
- Rated Output Current: 1250A
- Duty Cycle: 60% at 1250A
- Efficiency: Up to 88%
- Power Factor: 0.93
- Multi-Process: SAW, MMA, Carbon Arc Gouging
- Plate Thickness: 8mm – 20mm (single pass), up to 40mm+ (multi-pass)
- Protections: Over-voltage, over-current, over-heat, phase failure
- Cooling: Dust-free forced air cooling
Preciweld MZ 1250 SAW (415V Heavy Duty)
- Input Power Voltage: AC415V ±15%, 50/60 Hz
- Rated Output Current: 1250A
- Output Current Range: 112A – 1250A
- Duty Cycle: 60% at 1250A
- Plate Thickness: 8mm – 20mm+ (single pass)
- Applications: Shipbuilding, wind towers, pressure vessels, heavy structural steel
- Wire Diameter Compatibility: 3.2mm, 4.0mm, 5.0mm, 6.0mm
MZ 800 SAW Machine
- Rated Output Current: 800A
- Applications: Medium-heavy fabrication, structural beams and columns, general engineering
- Plate Thickness: 6mm – 16mm
- Features: Compact design, cost-effective for small to medium fabrication shops
MZ 1600 SAW Machine
- Rated Output Current: 1600A
- Applications: Extra heavy fabrication, shipbuilding, heavy pressure vessels, large-diameter pipes
- Plate Thickness: 12mm – 40mm+ (single pass), up to 100mm+ (multi-pass)
- Features: Highest deposition rate, maximum duty cycle for continuous operation
Industries & Applications Served by Our SAW Welding Machines
As a premier SAW welding machine manufacturer, supplier & distributor in India, our machines are trusted by thousands of heavy industries nationwide. Key applications include:
- Shipbuilding & Ship Repair (Visakhapatnam, Kochi, Kolkata, Mumbai): Longitudinal and girth welding of hull sections, bulk carriers, naval vessels, and ship structures – SAW provides deep penetration for thick plates and high productivity for long seams
- Wind Tower Fabrication (Gujarat, Tamil Nadu, Andhra Pradesh, Maharashtra, Karnataka): Welding of tapered tubular towers, flange to shell joints, and ring flanges – SAW ensures consistent quality and high deposition rates for tall tower sections
- Pressure Vessels & Boilers (Gujarat, Maharashtra, Tamil Nadu, Karnataka, Punjab): Long seam and circumferential welds on heavy wall vessels, boiler drums, LPG bullets, storage tanks, and chemical reactors
- Heavy Structural Steel (Across India): Fabrication of built-up beams, columns, bridge girders, stadium structures, and industrial sheds – SAW delivers high-strength welds with minimal distortion
- Large Diameter Pipe Mills (Gujarat, Maharashtra, Tamil Nadu, West Bengal): Longitudinal seam welding of pipes for oil & gas, water transmission, and infrastructure projects
- Heavy Earthmoving Equipment (Kolkata, Pune, Chennai, Bangalore): Fabrication of undercarriage components, boom arms, buckets, and chassis parts
- Railway & Defence (Across India): Fabrication of railway bridges, wagons, locomotive components, and defence equipment requiring high-strength welds
- Crane & Material Handling Equipment (Pune, Delhi, Kolkata, Ahmedabad): Welding of crane booms, hoists, gantry girders, and material handling structures
- Educational Institutes (IITs, NITs, Polytechnics): Training future welding engineers and metallurgists in advanced Submerged Arc Welding technology
Technical Excellence – Why Submerged Arc Welding (SAW) is Preferred for Heavy Fabrication
Submerged Arc Welding (SAW) offers significant advantages over other welding processes for heavy and thick-section applications:
- High Deposition Rate: Up to 10 kg/hour – 3 to 5 times faster than SMAW (stick welding) and 2 to 3 times faster than GMAW (MIG), resulting in dramatically reduced welding time and labor costs
- Deep Penetration: Single-pass welding on plates up to 20mm thickness, eliminating the need for multiple passes and reducing consumable consumption
- Spatter-Free Welds: No visible spatter means minimal post-weld cleaning – saves time and reduces consumable waste
- No Arc Flash: The welding arc is completely submerged under a blanket of granular flux, eliminating arc flash hazards for operators and surrounding workers
- Excellent Weld Appearance: Smooth, uniform bead with no undercut or excessive reinforcement
- High Weld Quality: Consistent mechanical properties with low hydrogen content – ideal for high-strength steel applications
- High Duty Cycle: SAW machines can operate continuously for extended periods (60% to 100% duty cycle), ideal for production environments
- Automation Friendly: SAW is easily automated using welding tractors, beam tracking systems, and flux recovery units for consistent, repeatable results
- Energy Efficient: IGBT inverter technology saves up to 55% electricity compared to conventional welding power sources
- Flux Recovery: Unfused flux can be recovered and reused, reducing consumable costs
- Suitable for Multiple Materials: Carbon steel, low alloy steel, stainless steel, and some non-ferrous alloys can be welded using SAW with appropriate flux and wire combinations
SAW Welding Machine Selection Guide – Which Model is Right for Your Application?
Choosing the correct SAW welding machine is critical for productivity, weld quality, and cost-efficiency. As a trusted SAW welding machine supplier in India, we help you select the perfect model based on your application:
- Small to Medium Fabrication Shops (6mm-16mm plate thickness): MZ 800 SAW – compact, cost-effective, ideal for structural beams, columns, and general engineering
- Medium to Heavy Fabrication (8mm-20mm plate thickness, medium production volume): MZ 1250 SAW Standard IGBT (380V) – perfect balance of power and efficiency for shipbuilding, wind towers, and pressure vessels
- Heavy Fabrication / Continuous Production (8mm-20mm+ plate thickness, high production volume): MZ 1250 SAW 415V Heavy Duty – higher reliability, stable performance in demanding industrial environments, ideal for 24/7 operation
- Extra Heavy Fabrication (12mm-40mm+ plate thickness, maximum deposition rate): MZ 1600 SAW – highest power, maximum deposition rate for shipbuilding (large vessels), heavy pressure vessels, and large-diameter pipe mills
- Automated Welding Lines: Any MZ series machine can be integrated with SAW carriages, beam track systems, flux recovery units, and programmable controllers for fully automated welding operations
SAW Welding Consumables – Flux & Wire for Optimal Results
For optimal SAW welding results, using the correct consumables is essential. We supply a complete range of SAW consumables alongside our welding machines:
- SAW Flux: Bonded (agglomerated) and fused flux types for carbon steel, low alloy steel, and stainless steel applications – available in 25kg and 50kg packaging
- SAW Welding Wire: Solid wire diameters from 3.2mm, 4.0mm, 5.0mm, and 6.0mm – suitable for automatic welding tractors and carriages
- Contact Tips & Nozzles: Genuine consumables for consistent wire feeding and arc stability
- Flux Recovery System Parts: Hoses, nozzles, and recovery unit components
- SAW Carriage & Track Systems: Portable automatic welding tractors for straight line and beam welding
Spare Parts & After-Sales Support
We maintain ready stock of genuine spare parts for all our SAW welding machines, including IGBT modules, PCB cards, contact tips, nozzles, wire feed rollers, control panels, and cooling fans. Our pan-India service network ensures minimal downtime with on-site repairs and annual maintenance contracts (AMC). For any SAW welding machine requirement in India – whether a new purchase, spare part, flux/wire supply, or service – you can rely on Jayendra Sales Corporation.
Why Jayendra Sales Corporation – Your Trusted SAW Welding Machine Partner
- Pan-India Delivery Network: Fast, insured transportation to any industrial location across all states and union territories
- Installation & Training: On-site commissioning, operator training, and SAW welding demonstrations with thick plates
- Genuine Consumables & Spare Parts: Ready stock of SAW flux, welding wire, contact tips, nozzles, and electronic components
- Competitive Pricing: Direct manufacturer engagement with flexible payment options and bulk order discounts
- 24/7 Technical Support: Dedicated service team for remote diagnostics and on-site assistance
- Authorized Distributors: For Preciweld, Accurate, and Weltronix SAW welding machines
- Automation Support: Technical guidance for integrating SAW machines with automatic carriages, beam tracks, and flux recovery systems
- Process Optimization: Our welding engineers help optimize SAW parameters (voltage, current, travel speed) for your specific material and thickness
SAW Welding Machine Suppliers in All Indian States & Major Cities
Click on your state or city below for detailed information on SAW welding machine supply in your region:
Need a SAW Welding Machine for Heavy Fabrication? Get Expert Consultation Today!
Call Mr. Jigar Patel (+91 99989 72525) or Mr. Jagdish Patel (+91 97129 57795) for free consultation, site survey, and best quote for MZ 1250 SAW or other models tailored to your application.
